Synology RackStation RS1221RP+
A powerful storage solution for businesses and IT enthusiasts with redundancy and service continuity features
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Synology RackStation RS1221+/RS1221RP+ is a powerful 2U 8-bay rackmount networkattached storage solution, perfect for centralizing data management in short rackdepth environments. The RS1221+ series is ideal at handling heavy file workloads and protecting digital assets in small business environments through the comprehensive data protection options included in the DiskStation Manager (DSM) operating system.
- High Performance
Tackle multi-user environments effortlessly with up to 2,315 MB/s read and 1,147 MB/s write performance - Compact Deployment
The RS1221+ and RS1221RP+ feature a short depth of just 298 mm and 399 mm respectively - 10GbE Ready
Add in a 10GbE SFP+ or RJ-45 NIC to instantly increase network bandwidth based on your existing infrastructure - High Availability
Configure two units together to create a Synology High Availability (SHA) cluster for maximum service uptime and minute-level failover
CPU
AMD Ryzen V1500B quad-core 2.2 GHz
Throughput
2,300 MB/s seq. read 100K 4K random read IOPS
Memory
113K 4K random read IOPS
Compact
30cm depth (38cm for RP model)
Features:
A compact design for space efficiency
The RS1221+ and its RX418 expansion units are designed to help you save space in compact deployments. At only 30 centimeters, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures. The RS1221RP+ with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.
- Fits into shallow rackmount enclosures
- Easy-to-install on 2-post racks
Built for reliability
Redundant power
Reduce the chance that power disruptions on a single distribution channel or PDU causes data and service availability degradation.
Maximize service availability
When paired with another identical unit, Synology High Availability enables automatic minute-level failover between two clustered servers in the event of a server failure to minimize service downtime.
Data integrity and protection
ECC memory and the Btrfs file system bring higher reliability and snapshot capabilities to help prevent data corruption and simplify data protection.
High performance storage for anything
Up to 2,315/1,147 MB/s sequential read and write throughput and over 100K/54K random read/write IOPS ensures ample performance for demanding workloads.
With room to grow with you
Easily upgrade the RS1221+/RS1221RP+ to match your usage environment, whether it's for performance, faster networking, or higher storage capacity.
- SSD cache
Boost read/write IOPS over HDD-only arrays by 16X or more with NVMe or SATA SSD Cache - 10GbE ready
Improve I/O with faster SFP+ or RJ-45 networking - Storage expansion
Expand to 12 drive bays with a RX418 expansion unit
Maximize data availability
Hyper Backup
A comprehensive backup and recovery solution for added data protection. Create backup destinations locally, on another Synology device, rsync servers, or cloud-based destinations, such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2 Storage, a dedicated backup destination for Synology devices. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage use.
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.
Protect your entire IT infrastructure
Protect your entire office with Active Backup
The Active Backup suite enables administrators to easily secure their entire IT infrastructure by backing up mission-critical data to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Benefit from deduplication, multiversioning to quickly jump back in time, and additional data efficiency optimizations for reduced bandwidth and storage use.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports mainstream virtualization solutions to enhance work efficiency with an easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments.
We have you covered
RS1221+/RS1221RP+ is backed by Synology's three-year hardware warranty. An optional two-year extended warranty that extends coverage to five years is available in select regions.
Powered by Synology DiskStation Manager
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.
Synology Drive
Instantly access your NAS files across multiple devices whenever you want, wherever you are.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Collaboration Suite
Satisfy all team collaboration needs behind the safety of your own private cloud with Synology Office, Calendar, and Chat.
Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.
- SATA: 3.5" HDD HAT5300
- NVMe: M.2 SSD SNV3000
- SATA: 2.5" SSD SAT5200

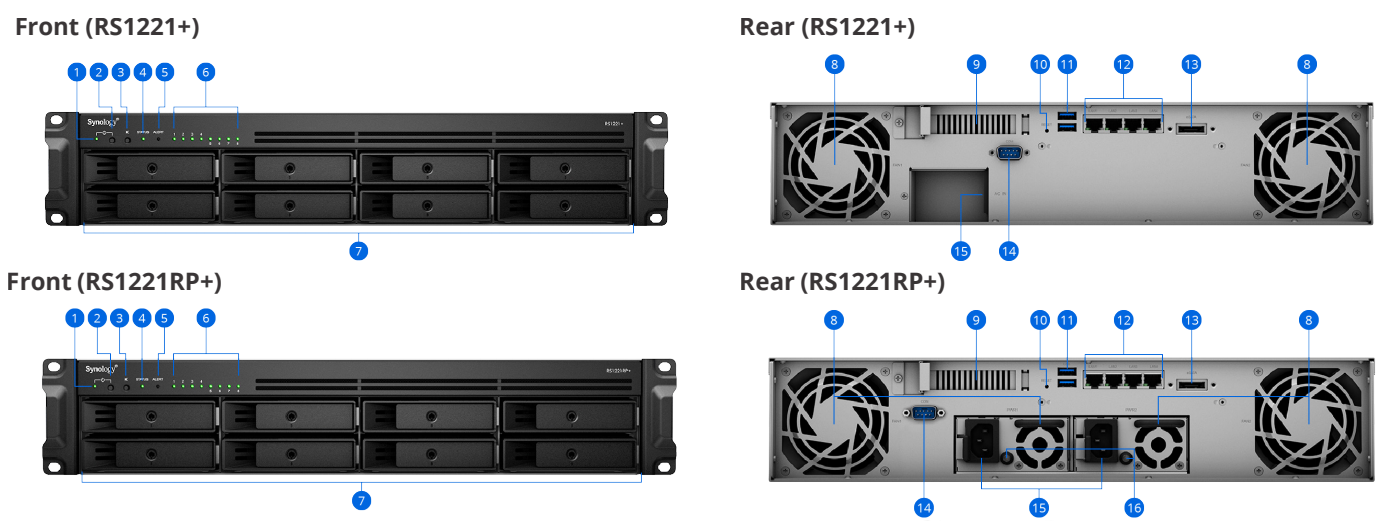

Specifications:
- Power Indicator
- Power Button
- Alert Off Button
- Status Indicator
- Alert Indicator
- Drive Status Indicators
- Drive Trays
- Fans
- PCIe Expansion Slot
- Reset Button
- USB 3.2 Gen 1 Ports
- 1GbE RJ-45 Ports
- Expansion Port
- Console Port
- Power Port(s)
- PSU Indicators & Alert Off Buttons
| RackStation RS1221+/RS1221RP+ Hardware Specifications: | |
|---|---|
| Hardware Specifications | |
| CPU | AMD Ryzen V1500B quad-core 2.2 GHz |
| Hardware encryption engine | Yes (AES-NI) |
| Memory | 4 GB DDR4 ECC SODIMM (expandable up to 32 GB) |
| Compatible drive type | 8 x 3.5" or 2.5" SATA HDD/SSD (drives not included) |
| Hot swappable drive | Yes |
| External port |
|
| Form factor | Rackmount 2U |
| Size (Height x Width x Depth) |
|
| Weight |
|
| Rack installation support |
|
| LAN port | 4 x 1GbE RJ-45 |
| Wake on LAN/WAN | Yes |
| PCIe 3.0 slot |
|
| Scheduled power on/of | Yes |
| System fan | 2 x (80 x 80 x 25 mm) |
| AC input power voltage | 100 V to 240 V AC |
| Power Frequency | 50 to 60Hz, single phase |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| General DSM specification | |
| Networking protocol | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| File system |
|
| Supported RAID type | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Storage management |
|
| SSD cache |
|
| File sharing capability |
|
| Privilege | Windows Access Control List (ACL), application privileges |
| Directory service | Windows AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integration |
| Virtualization | VMware vSphere 6.5, Microsoft Hyper-V, Citrix, OpenStack |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizable cipher suite) |
| Supported client | Windows 7 onwards, macOS 10.12 onwards |
| Supported browser | Chrome, Firefox, Internet Explorer 11 onwards, Safari 11 onwards; Safari (iOS 11 onwards), Chrome (Android™ 6.0 onwards) |
| File Server & Synchronization | |
| Drive | Provide a universal portal to synchronize your files across various platforms, including Windows, macOS, Linux, Android™ and iOS. The built-in universal portal allows you to access data anytime and anywhere.
|
| File Station | Provides virtual drives, remote folders, Windows ACL editor, compression/extraction of archived files, bandwidth control for specific users/groups, creation of sharing links, and transfer logs. |
| FTP Server | Supports bandwidth control for TCP connections, custom FTP passive port ranges, anonymous FTP, FTP over TLS/SSL and SFTP protocols, network booting with TFTP and PXE support, and transfer logs. |
| Presto File Server | Enables high-speed data transfer over WAN through the exclusive SITA technology between Synology NAS and desktop. |
| Cloud Sync | Offers one or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Amazon S3- compatible storage, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers and Yandex Disk. |
| Universal Search | Enables global search of applications and files. |
| File Server & Synchronization | |
| iSCSI Manager |
|
| Virtual Machine Manager | Deploy and run various virtual machines on Synology NAS, including Windows®, Linux®, or Virtual DSM |
| Data Protection & Backup Solution | |
| Hyper Backup | Support local backup, network backup, and data backup to public clouds |
| Backup tools |
|
| Snapshot Replication |
|
| Synology High Availability | Reduce service downtime by setting up two identical NAS into one high-availability cluster |
| Active Backup for G Suite | Support G Suite My Drive and Team Drive backup and restoration |
| Active Backup for Microsoft 365 | Supports Microsoft 365 OneDrive for Business, mail, contacts, and calendar backup and restoration |
| Active Backup for Business | All-in-one backup solution designed for heterogeneous business IT environment, enabling IT admins to remotely manage and monitor protection over PC, servers and VM on one centralized console |
| Productivity & Collaboration | |
| Collaboration tools | Users can collaborate through the instant messaging service Synology Chat, the online editor Synology Office, and the scheduling assistant Synology Calendar.
|
| Note Station | A note taking platform that supports rich text, note organization and versioning, encryption, sharing, media embedding, and attachments. |
| Synology MailPlus Server | Secure, reliable, and private mail solution with high-availability, load balancing, security and filtering design (includes 5 free email account licenses; additional accounts require the purchasing of additional licenses) |
| Synology MailPlus | Intuitive webmail interface for Synology MailPlus Server, customizable mail labels, filters, and user interface |
| Multimedia | |
| Moments | A feature-rich photo management application that includes AI-powered album creation from facial and subject recognition, photo editing and sharing capabilities, similar photo detection for duplicate management, auto-editing functions such as color correction and angle adjustments, and auto-selection of the best shots. Mobile applications are available on iOS and Android™ devices. |
| Other packages | Video Station, Photo Station, Audio Station, iTunes Server |
| Surveillance | |
| Surveillance Station | Maximum IP camera: 40 (total of 1,200 FPS at 720p, H.264) (Including two free camera licenses. Additional cameras require the purchasing of additional licenses) |
| All-in-One Server | |
| Synology Directory Server | Provide a flexible and cost-effective domain controller solution |
| Central Management System | Provide a single interface to manage and monitor multiple Synology NAS |
| VPN Server | Maximum connection: 30. Supported VPN protocol: PPTP, OpenVPN™, L2TP/IPSec |
| Mail Server | Supported Mail Server protocol: POP3, SMTP, IMAP. LDAP/AD account support |
| Mail Station | Webmail interface for Mail Server to receive emails from multiple POP3 mailboxes, customizable SMTP server |
| Web Station | Virtual host (up to 30 websites), PHP/MariaDB, 3rd-party applications support |
| Other packages | DNS Server, RADIUS Server, Log Center |
| Others | |
| Storage Analyzer | Displays volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently modified files, and least recently accessed files. |
| Antivirus Essential | Provides full system scans, scheduled scans, white list customization, and auto-update of virus definitions |
| iOS/Android™ applications | Synology Drive, Synology MailPlus, Synology Chat, Synology LiveCam, Moments, DS audio, DS photo, DS video, DS cam, DS file, DS finder, DS note |
| Other packages | Additional 3rd-party packages available on Package Center |
| Certifications and Packaging | |
| Environment safety | RoHS compliant |
| Package content |
|
| Optional accessories |
|
| Warranty | 3 Years |
Documentation:
Download the Synology RackStation RS1221+/RS1221RP+ Datasheet (PDF).
