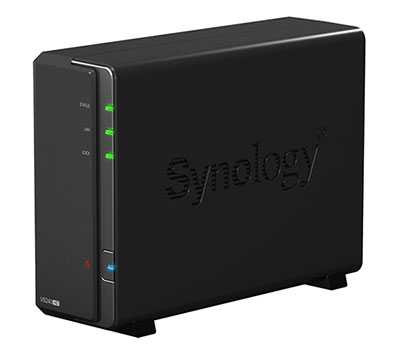

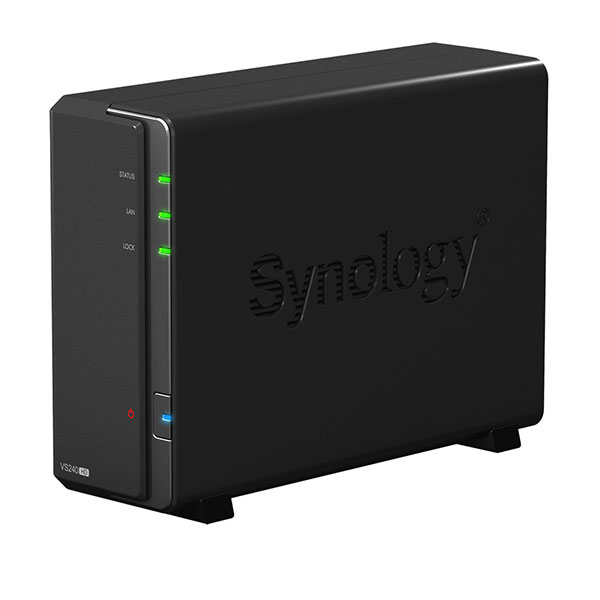

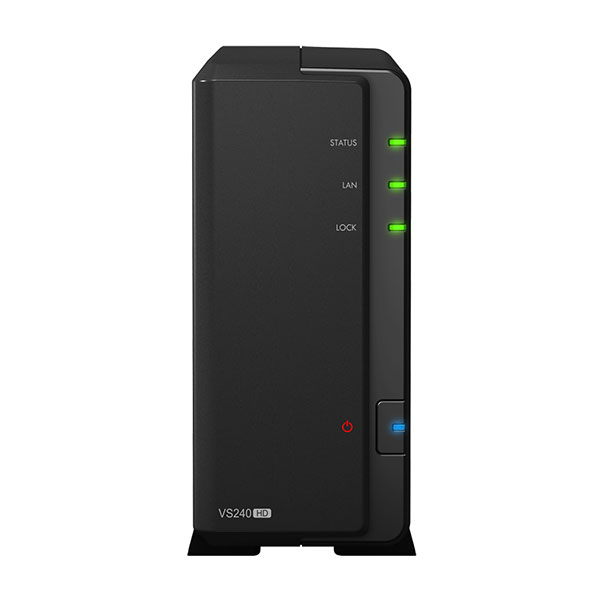

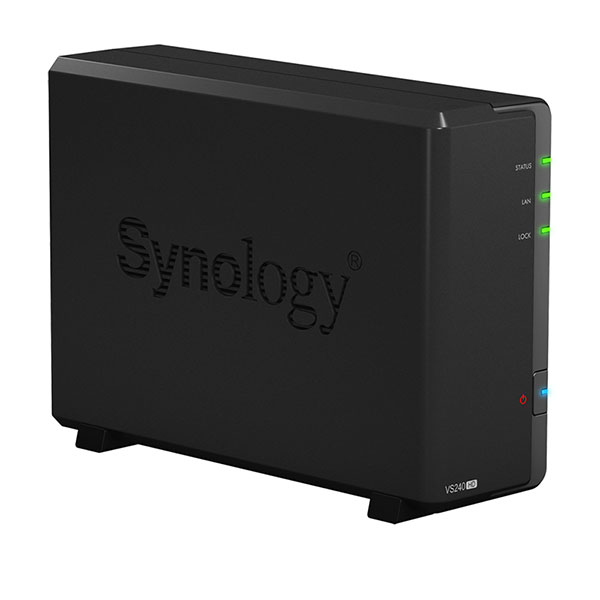

Synology VS240HD
Surveillance Station Live View Companion
Sorry, this product is no longer available, Please, contact us for a replacement product!
Overview:
High-performance surveillance solution purpose-built for ease of multi-channel viewing.
- PC-less Live-view & Playback Solution
- High-performance: Up to 24 Channels of Simultaneous HD Viewing at 720p

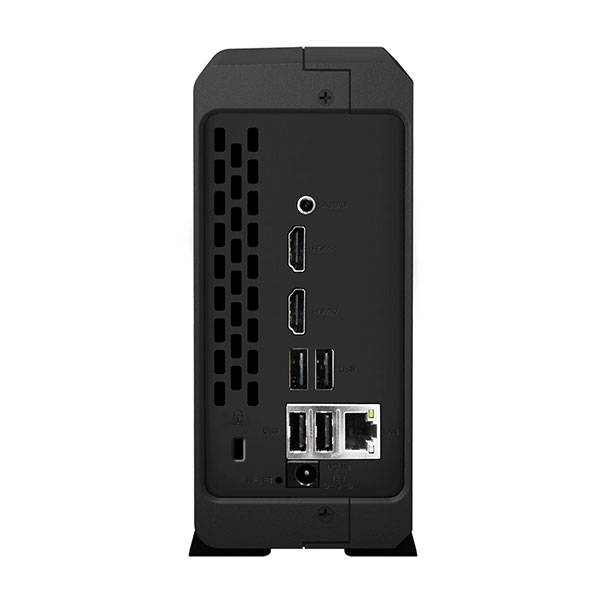

- Dual HDMI Video Output
- Energy-Efficient: Only 14.4W In Full Operation
- Space-Saving Compact Design
Live-view & Playback

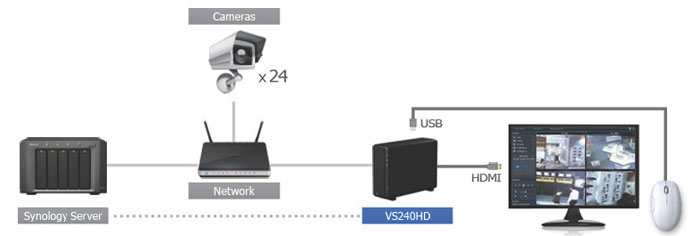

Synology VS240HD makes surveillance live-view and playback simple. Connect up to 24 high-definition IP cameras to VS240HD and pair it with a Synology server for ease of storing and retrieving footage with only a few clicks. With dual HDMI support, VS240HD ensures high-quality viewing. At the same time, multi-screen wall-mounted display is available for large-scale deployments.
Easy-to-Use
VS240HD was developed with a focus on ease-of-use for both casual and advanced users. The interface is simple and intuitive, with easy access to the most common functions, such as live-view, playback, and exporting, which allows you to step through recordings and export high-quality HDTV clips or snapshots to an external USB drive.
VS240HD allows the manipulation of PTZ on specific IP cameras by mouse-clicks. Useful angles can be saved and grouped to form "patrol" cycles while optimized live-view layouts are fully customizable just by drag-and-drop.
Energy-Efficient
VS240HD requires only 14.4W when fully-loaded with 24 channels, and lowers its power usage down to only 10W when idle. As a PC-less surveillance solution, VS240HD economizes on both equipment and energy costs in the long-term.

Specifications:
Technical Specifications | |
---|---|
Hardware Specifications | |

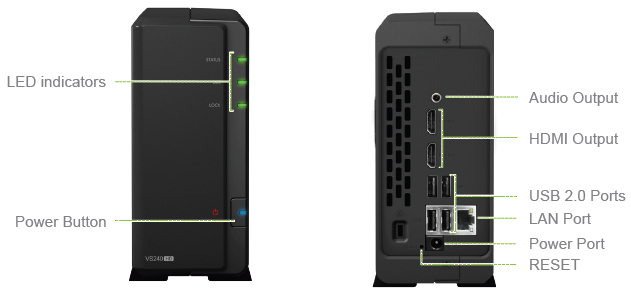

USB | 4 x USB 2.0 |
Video Output | 2 x HDMI |
Maximum Video Resolution | 1080p |
Audio Output | 1 x 3.5 mm Stereo Audio Jack |
Size (HxWxD) | 166 x 71 x 224 mm |
Weight | 870 g |
LAN | 1 x Gigabit |
AC Input Power Voltage | 100V to 240V AC |
Power Frequency | 50Hz to 60Hz, Single Phase |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | -10°C to 70°C (15°F to 155°F) |
Relative Humidity | 5% to 95%RH |
Power Consumption | 14.4W (24 Channels), 10W (Idle) |
Software Specifications | |
Maximum Channels | 24 (240FPs @ 720p) |
Playback | Yes |
Compression Format | MJPEG, MPEG-4, H.264 |
Snapshot | Yes (Save to USB disk) |
PTZ | Yes (For PTZ cameras only) |
Firmware Upgrade | Yes (Via USB disk) |
Environment and Packaging | |
Environment | RoHS Compliant |
Package Content |
|
Warranty | 3 years |
Documentation:
Download the Synology VS240HD Datasheet (PDF).
