Synology Expansion Unit RX1216sas
The Ultimate SAS & SATA Storage Expansion Solution

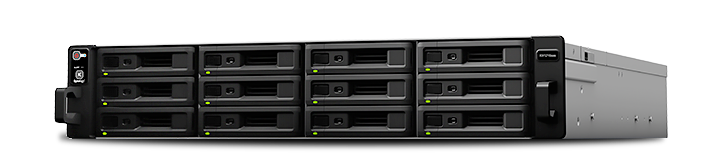

Synology RX1216sas

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

Synology RX1216sas delivers an effortless storage capacity expansion solution for Synology RackStation RS18016xs+ by adding 12 drives on-the-fly while directly connected.

  • Plug-n-use design for seamless storage space upgrade
  • Redundant data paths & power supplies ensure service uptime
  • SATA, SAS, or SSD drives for flexible capacity and balanced performance
  • Managed with Synology DiskStation Manager (DSM)
  • Backed with Synology's 5-year limited warranty & Synology Replacement Service (SRS)*

Storage Capacity Expansion

When storage capacity on the Synology RS18016xs+ reaches its limit, Synology RX1216sas provides an easy way to immediately scale up by additional 12 SATA, or SAS drives for flexibility and balanced performance. Volumes on the Synology RS18016xs+ can be expanded directly without having to reformat existing drives, ensuring that service on Synology RS18016xs+ continues during capacity expansion. Created as an independent volume, Synology RX1216sas provides an easy means of backing up Synology RS18016xs+.

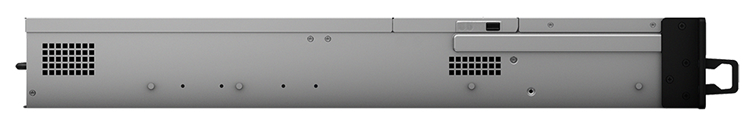

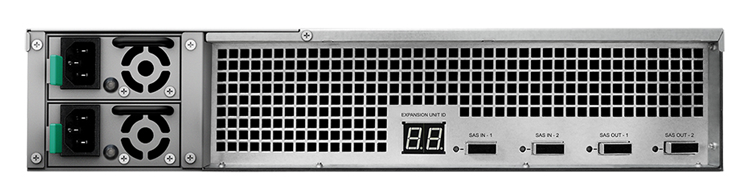

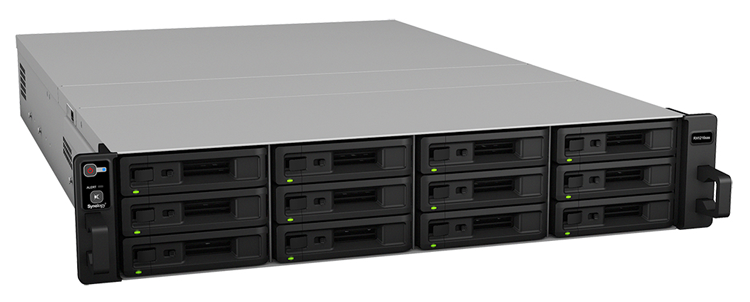

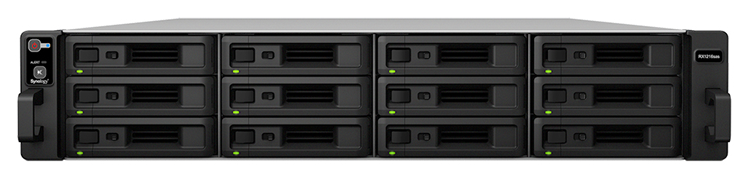

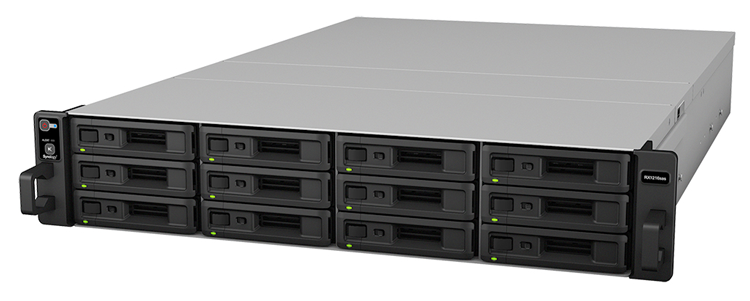

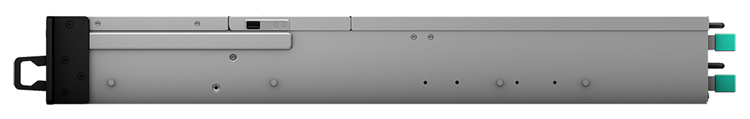

Product Views:



Specifications:


Hardware Specifications:
Applied Models RS18016xs+
Storage
Drive Bay(s) 12
Compatible Drive Type
  • 3.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II SSD
  • 3.5" SAS HDD
  • 2.5" SAS HDD
  • 2.5" SAS SSD
Maximum Internal Raw Capacity 96 TB (8 TB HDD X 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
MiniSAS IN-port 2
MiniSAS OUT-port 2
Appearance
Size 88 mm X 430 mm X 692 mm
Weight 13.5 kg
Power
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 2 X 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 67.31 W (Access)
34.05 W (HDD Hibernation)
British Thermal Unit 229.84 BTU/hr (Access)
116.25 BTU/hr (HDD Hibernation)
Note Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Redundant Power Supply (for RP model)
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Others
System Fan 80 mm X 80 mm X 4 pcs
Easy Replacement System Fan
Noise Level 45.1 dB(A)
Note Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • FCC Class A
  • CE Class A
  • BSMI Class A
Warranty 5 Years
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Expansion Cable: MiniSAS X 2
  • Quick Installation Guide X 1
Optional Accessories Synology RKS1314 - Rail Kit Sliding

Documentation:

Download the Synology RX1216sas Data Sheet (PDF).
