RackStation RS815+/RS815RP+
High-performance NAS server optimized for intensive tasks and encryption

Features:

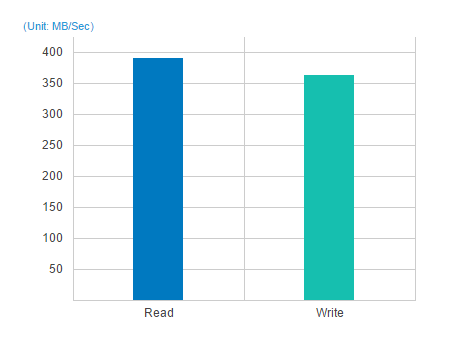

Quad-core CPU brings high performance

Powered by a quad-core CPU running at 2.4 GHz, RS815+/RS815RP+ delivers average 389.03 MB/s reading and 361.33 MB/s writing.1 With this superior performance and a RAM module expandable to 6GB (2GB by default), RS815+/RS815RP+ is a powerful 1U NAS server for mission-critical tasks of SMBs.

Ideal encrypted data transmission with AES-NI

RS815+/RS815RP+ features a hardware encryption engine, which offloads encryption calculation tasks away from the main CPU. That means files and folders are encrypted on the fly without compromising the performance ─delivering encrypted data transmission speeds over 388.66 MB/s reading and 158.9 MB/s writing.

Robust scalability up to 8 drives

When your data storage is nearing its limits, RS815+/RS815RP+ can be connected to a dedicated RX415 expansion unit, letting you easily scale up to 8 drives for additional storage on the fly. With a RX415 connected through an eSATA cable with specially-designed locking connectors, raw capacity can be as high as 48TB.

Optimize storage management

With Synology's Storage Manager, RS815+/​RS815RP+ allows for flexible storage deployment and utilization. You can optimize RAID configuration with Synology Hybrid RAID (SHR) while providing redundant data protection. Other features such as multiple volumes on single RAID and Global Hot Spare also greatly enhance management efficiency and fit deployment of any kind.

SSD cache technology

RS815+/RS815RP+ enables the combination of hard drives and SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache support, RS815+/RS815RP+ offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement.

Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Fit into business environments easily

With the support of Windows AD, LDAP, and Domain Trust, RS815+/​RS815RP+ enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on RS815+/​RS815RP+ allows IT administrators to fine tune access controls and set up privileges to files and folders on RS815+/​RS815RP+ through the familiar Windows user interface. With compatibility for major protocols, RS815+/​RS815RP+ can eliminate server configuration overhead and enhance IT administrators' efficiency.

Seamless storage solution for virtualization environments

RS815+/​RS815RP+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® 5 & VAAI integration, RS815+/​RS815RP+ helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.

Synology CMS (Central Management System)

For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.

All-in-one server

With just one RS815+/​RS815RP+, it's possible to handle a vast amount of tasks. RS815+/​RS815RP+ helps your company gain a competitive edge by acting as your multi-function server. Directory Server provides LDAP service, while DNS and DHCP packages allow you to host a domain name server and automate network IP assignment at no extra cost. With Synology's Proxy Server, you can regulate content access and monitor who can access which website while saving bandwidth. You can host up to 30 websites with Web Station, safeguard the office environments with Surveillance Station, send and receive mails using your own email domain with Mail Station, share printing capability with Printer Server, make RS815+/​RS815RP+ act as a VPN server to access company's resources remotely, and more.

Ensuring business continuity

Uninterrupted availability is a critical goal for all businesses. RS815+/​RS815RP+ supports Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular "heartbeats" between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, RS815+/​RS815RP+ also ensures redundancy in the event of unexpected network failure.

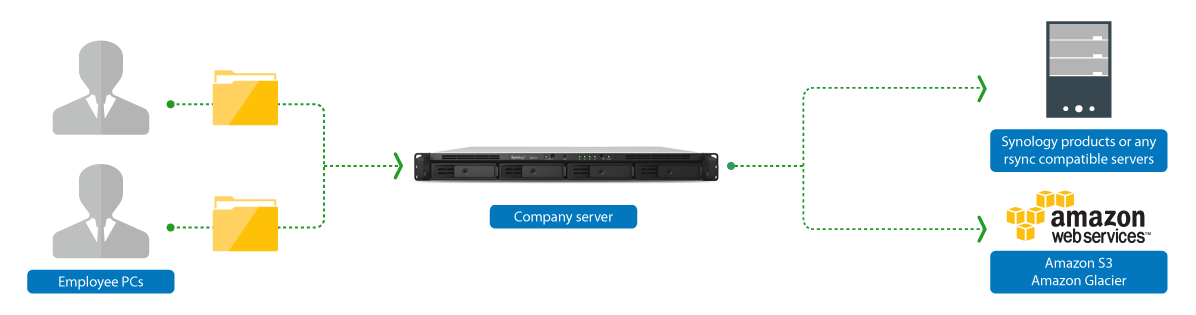

Powerful backup solutions to enhance efficiency

Backup & Replication feature allows you to back up data from one RS815+/​RS815RP+ to another DiskStation, or rsync-compatible servers. It also provides the flexibility to restore the server to any particular point in time, and back up modified blocks to optimize storage and processing time. In addition, RS815+/​RS815RP+ offers you the capability to back up iSCSI LUNs with no extra charge. Businesses can enjoy efficient backup performance with "Point-in-time copy" technology for data consistence and incremental backup to speed up processing time.

Increase business productivity with cloud solutions

With comprehensive cloud solutions, RS815+/​RS815RP+ lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM - no one will be able to access its content without your private key.

Secure your data

RS815+/​RS815RP+ offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorised system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, RS815+/​RS815RP+ provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.

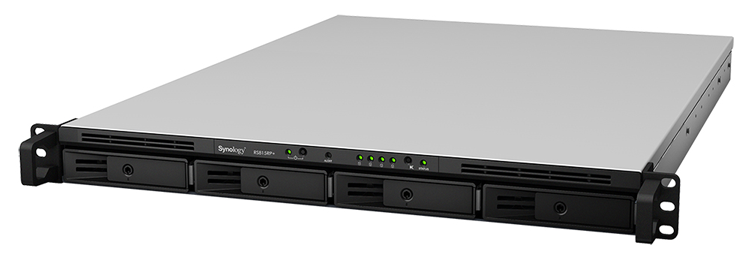

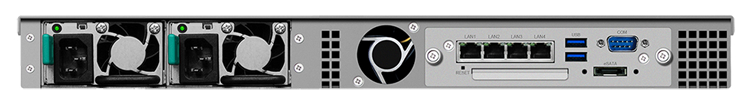

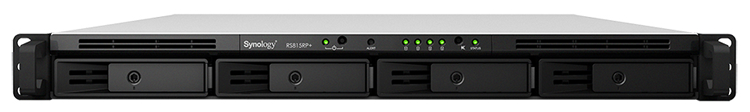

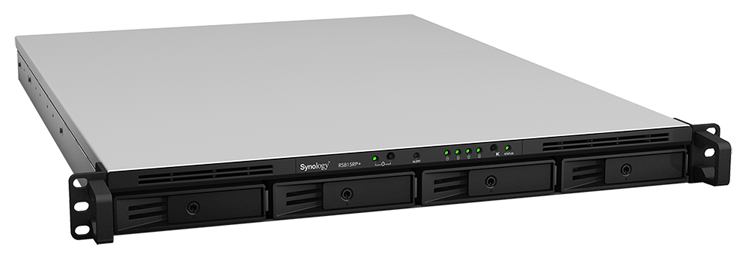

Product Views:

Technical Specifications:

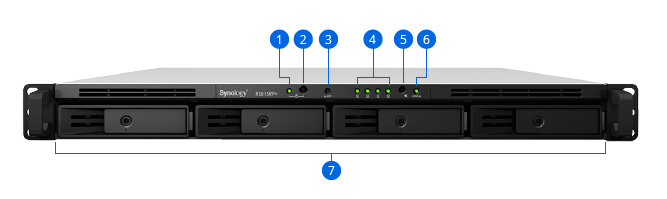

1. Power indicator
2. Power button
3. Alert indicator
4. Drive status indicator
5. Beep off button
6. Status indicator
7. Drive tray

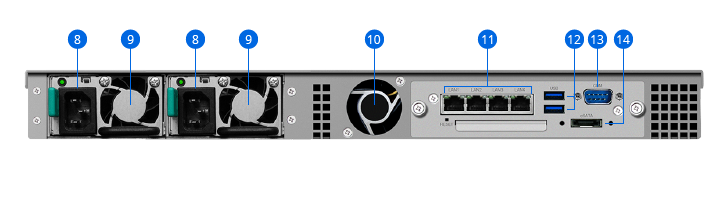

8. Power port
9. PSU fan
10. Fan
11. 1GbE RJ-45 port
12. USB 3.0 port
13. Console port
14. eSATA port

Technical Specifications:
Hardware Specifications
CPU Model	Intel Atom C2538
CPU Frequency	Quad Core 2.4 GHz
System Memory	2 GB DDR3
Memory Module Pre-installed	2 GB X 1
Total Memory Slots	2
Memory Expandable up to	6 GB (2 GB + 4 GB)
Maximum Drive Bays with Expansion Unit	8
Maximum Internal Raw Capacity	32 TB (8 TB HDD X 4) (Capacity may vary by RAID types)
USB 3.0 Port	2
Size (Height X Width X Depth)	44 mm X 430.5 mm X 457.5 mm 44 mm X 430.5 mm X 591.8 mm (for RP model)
Weight	6.73 kg 9.36 kg (for RP model)
RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
System Fan	40 mm X 40 mm X 3 pcs
Noise Level	25.3 dB(A) 52.8 dB(A) (for RP model)
Power Supply Unit / Adapter	250W 2 X 250W (for RP model)
AC Input Power Voltage	100V to 240V AC
Power Consumption	36.78 W (Access) 20.57 W (HDD Hibernation) 45.88 W (Access, for RP model) 30.74 W (HDD Hibernation, for RP model)
Power Frequency	50/60 Hz, Single Phase
Environment Temperature
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Other
Certification	FCC Class A CE Class A BSMI Class A
Warranty	3 Years
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications:
Networking protocol	SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
File system	Internal: ext4 External: ext4, ext3, FAT, NTFS, HFS+
Storage management	Maximum Single Volume Size: 108 TB Maximum Internal Volume #: 512 Maximum iSCSI Target #: 32 Maximum iSCSI LUN#: 256 Raid Clone/Snapshot support Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 Synology Expansion Unit Support : RX415
File sharing capability	Maximum User Account: 2048 Maximum Group: 256 Maximum Shared Folder: 512 Maximum Concurrent CIFS/AFP/FTP Connections: 512
Privilege	Windows Access Control List (ACL)
Directory service	Windows AD Integration: Domain Users login via Samba (CIFS)/AFP/FTP/File Station, LDAP Integration
Virtualization	VMware vSphere 5, Microsoft Hyper-V, Citrix Certified
Security	FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection
Utilities	Synology Assistant, Cloud Station, Evidence Integrity Authenticator
Supported client	Windows XP onward, Mac OS X 10.5 onward, Ubuntu 9.04 onward
Supported browser	Chrome, Firefox Internet Explorer: 8 or onward, Safari 5 or onward, Safari (iOS 5 or later on iPad), Chrome (Android 4.0 on tablets)
Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český
Applications:
File Station	Virtual Drive, Remote Folder
Backup solutions	Network Backup, Local Backup, Desktop Backup, Shared Folder Sync - Maximum Task Number: 8, Configuration Backup
Mail Server	Supported Mail Server Protocols: POP3, SMTP, IMAP
FTP Server	Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log
Web Station	Virtual Host (up to 30 websites), PHP/MySQL, 3rd-Party Applications Support
Printer Server	Maximum Printer #: 2, Printing Protocols: LPR, CIFS, IPP, Apple iOS Printing, Google Cloud Print™, Multi Functional Print Server (MFP functions are for Windows PC only)
Log Center	SSL Connection, Log Rotation: 6 months, 1 year, 2 years, 3 years, Email Notification
iOS/Android applications	DS audio, DS cam, DS cloud, DS download, DS file, DS finder, DS photo+, DS video, DS note
Windows Phone applications	DS audio, DS download, DS file, DS finder, DS photo+, DS video
Add-on Packages:
Surveillance Station	Default IP cam #: 2, Maximum IP cam # (licenses required): 40 (with two free licenses to install two IP cameras. Additional licenses can be purchased to expand the license quota.)
VPN Server	Maximum Connections : 20, VPN Method: PPTP, OpenVPN
Mail Station	Webmail Interface for Mail Server, Receiving Mails from Multiple POP3 Mailboxes, Customizable SMTP Server
Antivirus Essential	Full System Scan, Scheduled Scan, White List Customization, Virus Definition Auto Update
Cloud Station Server	Maximum Concurrent File Transfers: 512, Retain Historical and Deleted File Versions
Cloud Sync	Data Sync with Public Cloud Services: Dropbox, Google Drive, Baidu, Microsoft OneDrive, Box and hubiC
DLNA/UPnP Media Server	DLNA certified, PS3/PS4/Xbox 360/Xbox One support
Download Station	Supported download protocols: BT/HTTP/FTP/NZB/eMule Maximum concurrent download task: 80
Note Station	Rich-Text Note Organization with Versioning, Encryption, Sharing, Media Embedding and Attachments
Other packages	Photo Station, Audio Station, iTunes Server, 3rd-party packages
Environment & Packaging:
Environment	RoHS Compliant
Packaging Content	RS815+/RS815RP+ Main Unit Welcome Note Accessory Pack AC Power Cord X 1 (RS815+) AC Power Cord X 2 (RS815RP+)
Optional Accessories	Remote Camera License Pack Synology RKS1314 - Rail Kit Sliding Synology RKM114 - Rail Kit Mounted Expansion Unit (RX415) 4GB DDR3 RAM Module

*Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
1.Performance figures could vary on different environments.
2.RS815+/RS815RP+ supports one Synology RX415, sold separately.

Performance:

4-bay NAS

Synology strives to enhance the performance of our NAS with every software update, even long after a product is launched. For enterprises and users that demand uncompromising performance from their servers, check the figures below to find the most suitable choice.

1GbE SMB - Sequential Throughput (64KB)

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
Read	366.47	225.27	226.07	226.02	226.29	112.94	223.31
Write	347.53	145.76	222.98	170.49	220.84	108.88	77.49

1GbE SMB - Sequential Throughput via Encrypted Shared Folder (64KB)

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
Read	361.42	151.18	226.05	224.78	226.09	112.78	86.7
Write	255.91	76.76	221.8	139.73	185.64	87.79	42.49

1GbE SMB - Windows File Transfer (3GB file x 1)

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
Windows Download	112.57	111.23	112.92	111.53	112.38	111.68	112.61
Windows Upload	111.8	109.04	111.41	110.89	111.23	100.99	77.81

1GbE SMB - Windows File Transfer (1MB file x 3000)

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
Windows Download	84.08	81.43	92.5	79.75	83.95	82.72	76.94
Windows Upload	62.43	57.48	66.62	56.97	64.77	56.65	47.01

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (3GB file x 1)

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
Windows Download	112.27	57.82	112.38	111.3	112.14	111.68	42.45
Windows Upload	107.2	40.75	111.34	96.24	104.3	86.19	26.99

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (1MB file x 3000)

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
Windows Download	80.67	46.66	81.38	71.77	81.38	71.83	35.13
Windows Upload	40.21	25.91	41.52	38.87	42.62	37.99	17.48

1GbE AFP - Mac File Transfer (3GB file x 1)

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
AFP Download	94.51	93.79	94.42	93.25	93.61	94.16	94.12
AFP Upload	93.28	88.58	92.95	90.47	91.92	82.15	71.75

1GbE AFP - Mac File Transfer (1MB file x 3000)

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
AFP Download	68.75	44.51	75.85	44.65	67.45	44.86	61.42
AFP Upload	55.4	57.92	65.22	58.32	64.2	54.96	47.3

1GbE Web Server - HTML Response Efficiency

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
Responses per second	52010.11	3333.06	63488.82	23824.99	39699.81	23430.09	18668.92

1GbE Web Server - PHP Response Efficiency

Model	RS815(RP)+	RS816	DS918+	DS418	DS418play	DS418j	DS416slim
Responses per second	10934.26	5996.57	13690.33	8874.15	8457.31	5585.42	3317

NAS:

• Operating System: DSM 6.1
• Volume Type: RAID 5 (4 bay), RAID 1 (2 bay), Basic (1 bay)
• Drives:
  • DS416slim: Fully loaded with Intel 535 Series 240GB SSDSC2BW240H6 SSD
  • Other models: Fully loaded with Seagate ST6000VN0001 6TB HDD
• File System:
  • EXT4:
    • [1-bay] DS116, DS115j
    • [2-bay] RS217, DS216, DS216play, DS216j, DS216se
    • [4-bay] RS816, DS418, DS418j, DS416slim
  • Btrfs:
    • [2-bay] DS718+, DS218+
    • [4-bay] RS815(RP)+, DS918+, DS418play
• 1GbE Network Environments:
  • For models with single 1GbE LAN port: MTU 1500; connected to 1 client PC via HP 2530-48G switch
  • For models with multiple 1GbE LAN ports: Link Aggregation is enabled for Sequential Throughput tests; MTU 1500; connected to client PCs via HP 2530-48G switch

Client PC:

• 1GbE SMB Network Environments:
  • For NAS models with single 1GbE LAN port: Intel Core i7-3770 3.40GHz; 32GB DDR3-1866; RAMdisk with 14GB source partition and 14GB target partition; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
  • For NAS models with multiple 1GbE LAN ports: Intel Core i7-3770 3.40GHz; 4GB DDR3-1600; Intel 520 (120GB) SSD x 2; striped volume; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
• IOMeter setting for Sequential Throughput tests: Continuously read from/write to a single 8GB file for 3 minutes; Block size: 64KB
• 1GbE Web Server Network Environment:
  • Intel Core i7-6700 3.40GHz; 16GB DDR4-2133; Intel Gigabit CT; MTU 1500; Ubuntu 16.04
  • (html) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark" http://DS_IP/index.html
  • (php) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark"http://DS_IP/echo.php
• 1GbE AFP Network Environment: Mac Mini; 2.3GHz 4 core Intel Core i7; 16GB DDR3-1600; RAMdisk with 7GB source partition and 4GB target partition; MTU 1500; OSX 10.9

Special Note:

• Performance figures are achieved in the Synology lab by using very powerful client computers with optimized network settings, and could vary in different environments. Regular office desktop or notebook computers may not be able to reproduce these figures.

Documentation:

Download the Synology RackStation RS815+ Datasheet  (PDF).
