Synology E10G15-F1
High speed data transmission for Synology XS+/XS series NAS servers

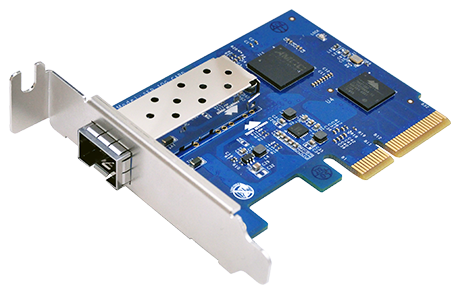

E10G15-F1 Ethernet Card

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

Designed specifically for Synology XS+/XS series NAS servers, Synology E10G15-F1 is a 10 Gigabit, single SFP+ port PCI Express x4 adapter which provides a cost-effective solution to increase Ethernet connection speed. Featuring high speed data transmission at a 10 Gbps connection over fiber-optic cabling, 802.1Q VLAN tagging, and 802.3x flow control, E10G15-F1 allows businesses to enhance agility and enjoy high-performance access to Synology XS+/XS series NAS servers.

Exclusive for XS+/XS series NAS servers

With businesses seeing more and more data-intensive tasks, having a 10GbE network is a good solution for organizations that need high network bandwidth and performance daily operations, such as data access or backup. With Synology E10G15-F1 Ethernet adapter, Synology XS+/XS series NAS servers gain a flexible choice for upgrading system specification and optimizing data transmission.

Specifications:


General Specifications:
Standards
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.3x Flow Control
  • IEEE 802.3ae 10Gbps Ethernet
Data Transfer Rates 10 Gbps
Network Operation Mode Full Duplex
Supported Features
  • 9 KB Jumbo Frame
  • Simple Network Management Protocol (SNMP) Agent
  • IEEE 802.3ad Link Aggregation Support
  • TCP/UDP/IP Checksum Offloading
Applied Models
  • RS18016xs+
  • RC18015xs+
  • RS3614xs+
  • RS3614(RP)xs
  • RS10613xs+
  • RS3413xs+
  • RS3412(RP)xs
  • RS3411(RP)xs
  • DS3615xs
  • DS3612xs
  • DS3611xs
SFP+ Cable Support SFP+ Cable Support: SFP+ 10GbE Direct Attach Twinax Cables with Connectivity up to 2 Meters.
Note DSM version requirement: 5.1-5004 or later version
Hardware Specifications
Size (Height X Width X Depth) 108 mm X 120 mm X 19 mm
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years

Documentation:

Download the Synology E10G15-F1 Ethernet Adapter Data Sheet (PDF).
