Synology Expansion Unit DX513
Expansion Unit for Increasing Capacity of the Synology DiskStation

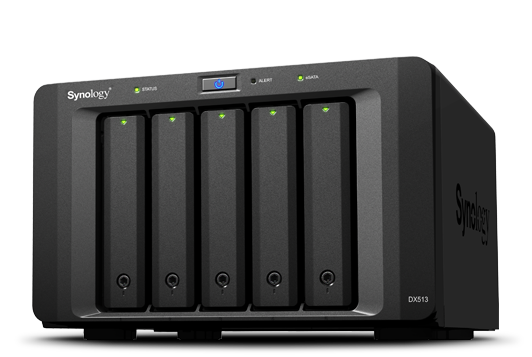

Synology DX513

Sorry, this product is no longer available, replaced by the DX517.



Overview:

Synology DX513 delivers an effortless solution for volume expansion and data backup for selected Synology DiskStation models. The DX513 seamlessly scales up the storage capacity of the DiskStation by additional 5 hard drives on-the-fly when connected directly to an expansion cable.

  • Online Volume Expansion
  • Dedicated Local Backup Solution
  • Reliable Plug-n-use Design
  • Hot-swappable HDD Design
  • Auto power on/off with DiskStation Models

Volume Expansion & Backup

Volume Expansion & BackupWhen running out of hard drive capacity on the Synology DiskStation, Synology DX513 provides an easy way to immediately scale capacity by additional 5 hard drives. The RAID volume on the Synology DiskStation can be expanded directly without having to reformat the existing hard drives, ensuring the Synology DiskStation continues its service during the capacity expansion.

Synology DX513 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the Synology DX513 provides a great backup solution to its local hard disks in case of system failure.

Reliable Plug-n-use Design

The Synology DX513 is connected to the Synology DiskStation using an expansion cable with custom-designed connectors on both ends, ensuring a reliable connection and maximum throughput. The 3.0 Gb/sec connection speed allows the hard drives in the connected Synology DX513 to operate as the internal ones of Synology DiskStation.

Green & Easy to ManageGreen & Easy to Manage

Deep Sleep mode can be manually configured to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the hard disk. DX513 can also automatically power on/off when paired with selected DiskStation, so no user intervention is needed to keep the system running intelligently and efficiently.

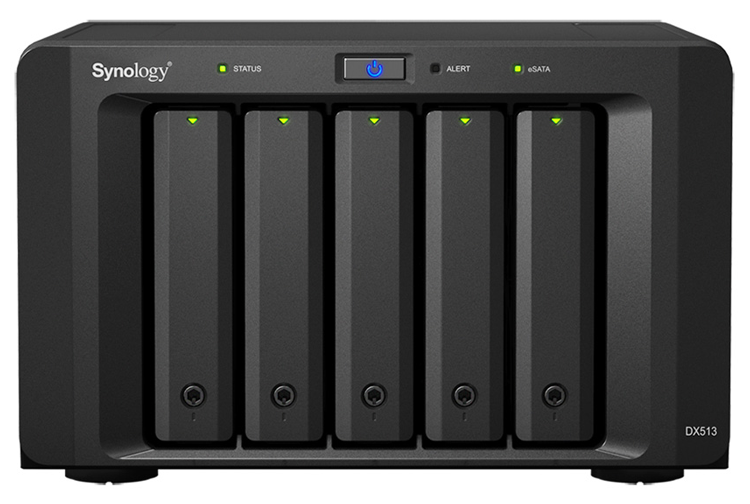

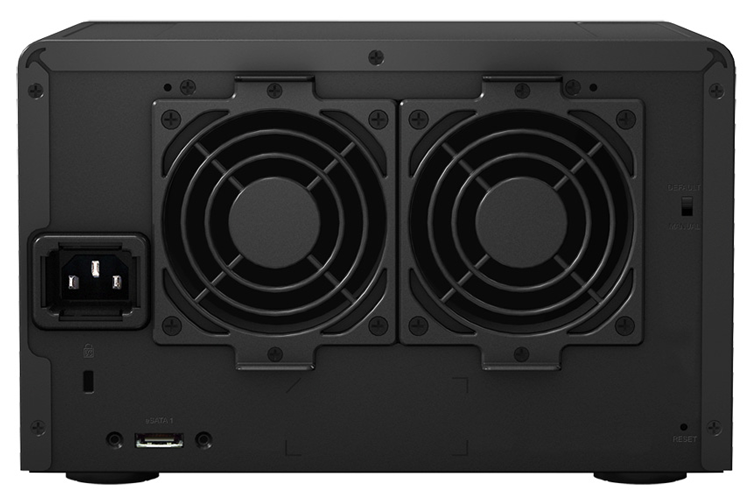

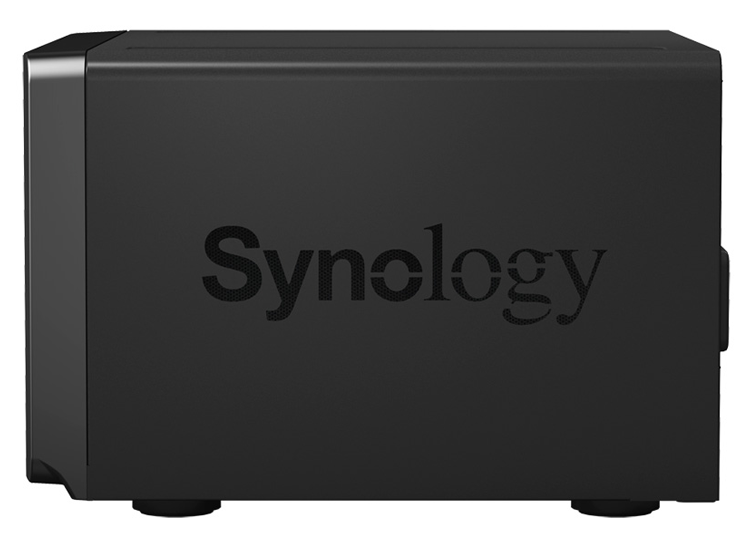

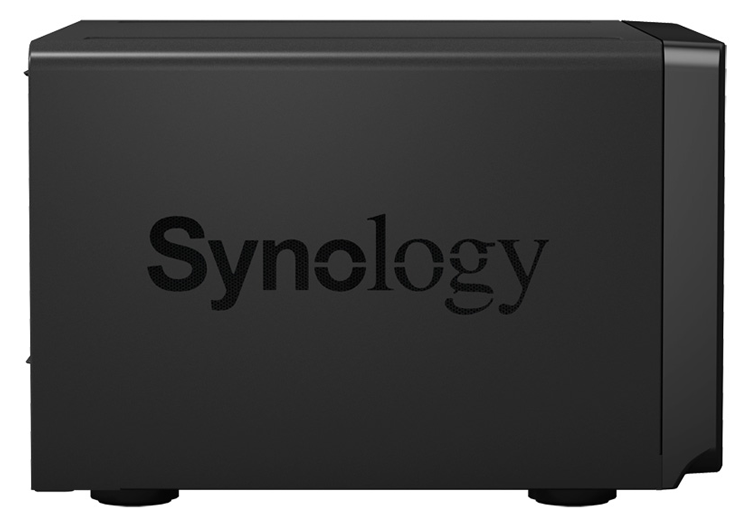

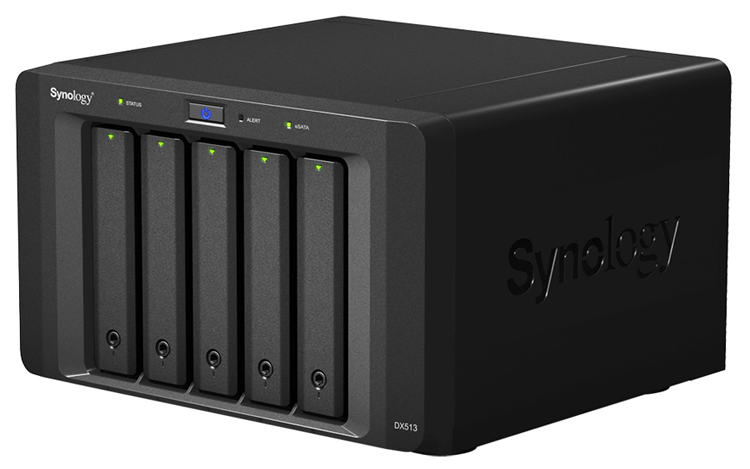

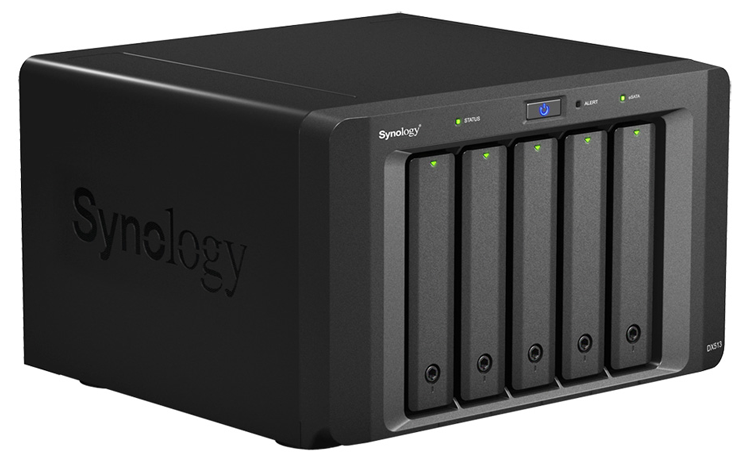

Product Views:



Specifications:


Hardware Specifications:
Applied Models
  • DS1815+
  • DS1813+
  • DS1812+
  • DS1515+
  • DS1513+
  • DS1512+
  • DS1511+
  • DS1010+
  • DS713+
  • DS712+
  • DS710+
  • DS1515
  • DS715
Storage
Drive Bay(s) 5
Compatible Drive Type
  • 3.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II SSD
Maximum Internal Raw Capacity 40 TB (8 TB HDD X 5) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
eSATA port 1
Appearance
Size 157 mm X 248 mm X 233 mm
Weight 3.91 kg
Power
Power Recovery Synchronized with the Synology DiskStation
Power Supply Unit / Adapter 200W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 45.1 W (Access)
16.5 W (HDD Hibernation)
2 W (Deep Sleep)
British Thermal Unit 153.89 BTU/hr (Access)
56.30 BTU/hr (HDD Hibernation)
6.82 BTU/hr (Deep Sleep)
Note Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -10°C to 70°C (15°F to 155°F)
Relative Humidity 5% to 95% RH
Others
System Fan 80 mm X 80 mm X 2 pcs
Easy Replacement System Fan
Noise Level 21.5 dB(A)
Note Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 3 Years
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • User's Guide X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Expansion Cable: eSATA X 1

Documentation:

Download the Synology DX513 Data Sheet (PDF).
