Synology Expansion Unit DX213
Expansion Unit for Increasing Capacity of the Synology DiskStation

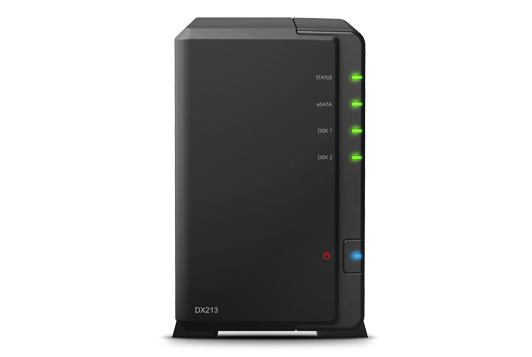

Synology DiskStation DX213

Sorry, this product is no longer available. Please contact us for more information.

Overview:

Synology DX213 delivers an effortless solution for volume expansion and data backup for selected Synology DiskStation models. The DX213 seamlessly scales up the storage capacity of the DiskStation by additional 2 hard drives on-the-fly when connected directly to an expansion cable.

  • Online Volume Expansion
  • Dedicated Local Backup Solution
  • Reliable Plug-n-use Design
  • Auto power on/off with DiskStation Models

Volume Expansion & Backup

Volume Expansion & BackupWhen running out of hard drive capacity on the Synology DiskStation, Synology DX213 provides an easy way to immediately scale capacity by additional 2 hard drives. The RAID volume on the Synology DiskStation can be expanded directly without having to reformat the existing hard drives, ensuring the Synology DiskStation continues its service during the capacity expansion.

Synology DX213 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the Synology DX213 provides a great backup solution to its local hard disks in case of system failure.

Reliable Plug-n-use Design

The Synology DX213 is connected to the Synology DiskStation using an expansion cable with custom-designed connectors on both ends, ensuring a reliable connection and maximum throughput. The 3.0 Gb/sec connection speed allows the hard drives in the connected Synology DX213 to operate as the internal ones of Synology DiskStation.

Green & Easy to ManageGreen & Easy to Manage

Deep Sleep can be manually configured to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the hard disk. The DX213 will also smartly power on/off with the attached DiskStation, so no user intervention is needed to keep this system running smartly and efficiently.

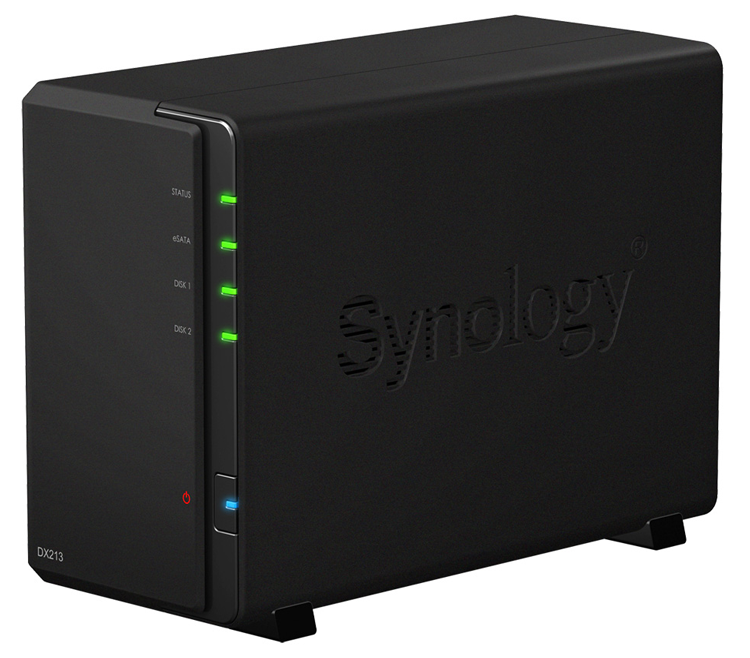

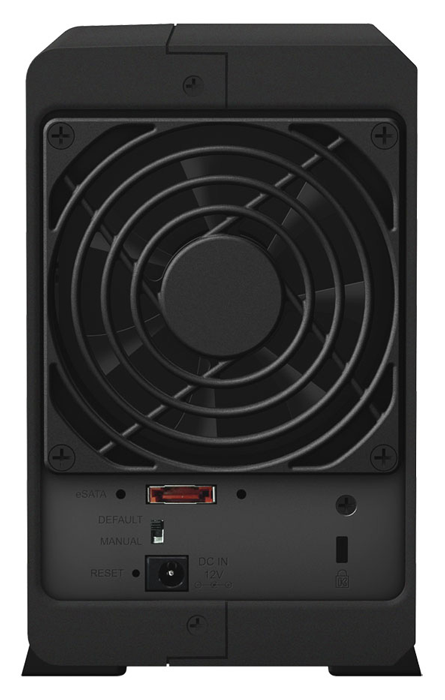

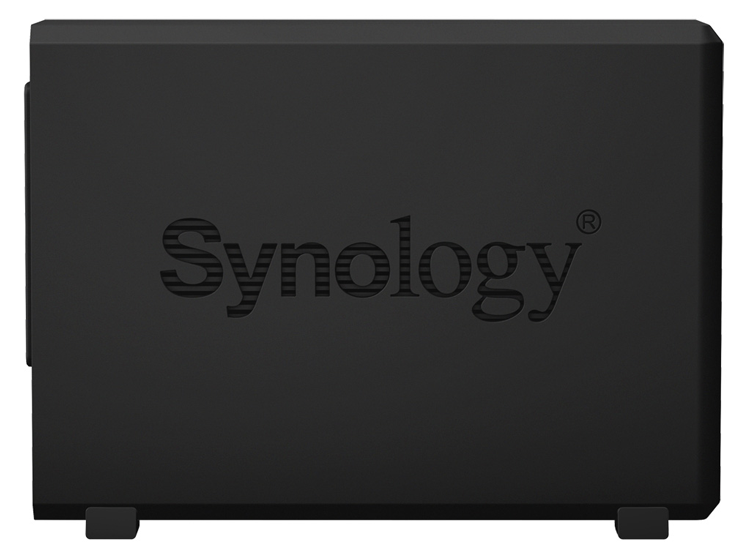

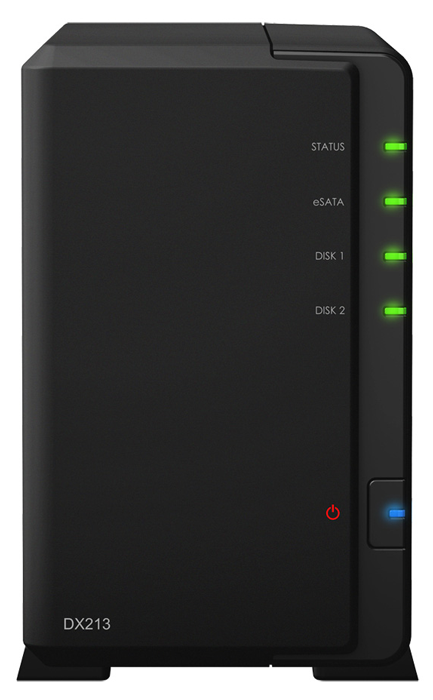

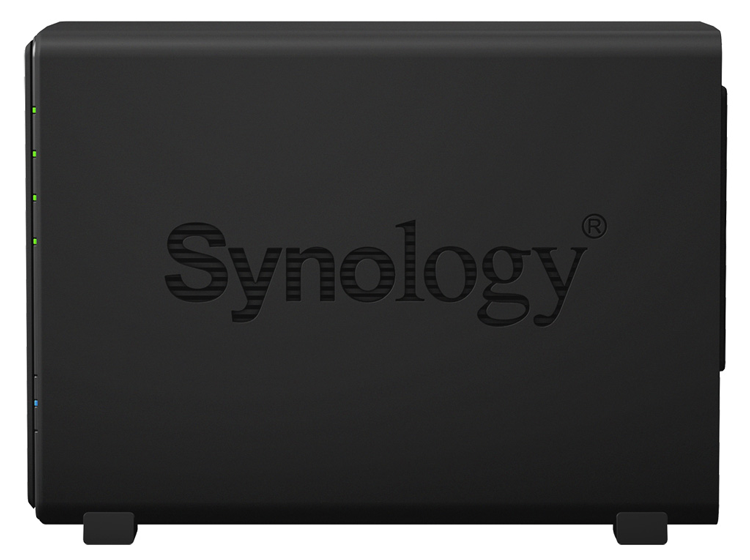

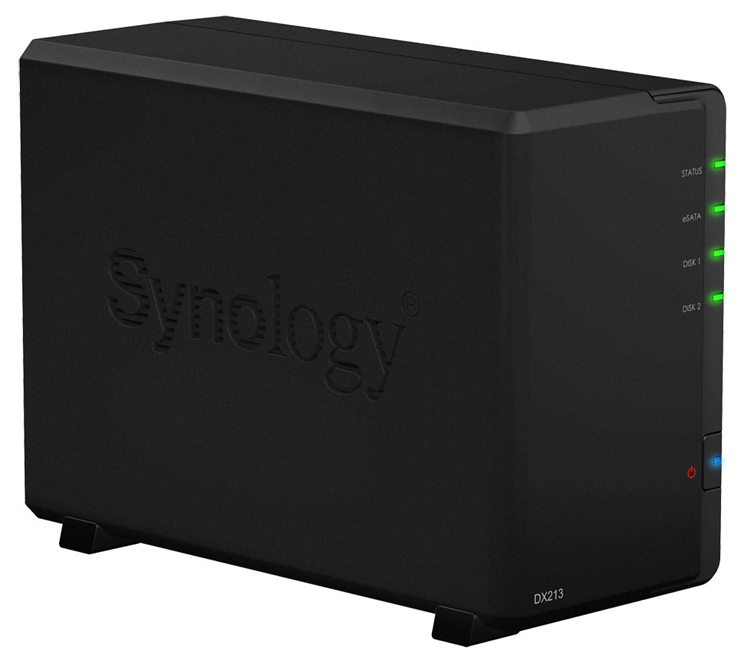

Product Views:



Specifications:


Hardware Specifications:
Applied Models
  • DS1815+
  • DS1813+
  • DS1812+
  • DS1515+
  • DS1513+
  • DS1512+
  • DS1511+
  • DS1010+
  • DS713+
  • DS712+
  • DS710+
  • DS1515
  • DS715
Storage
Drive Bay(s) 2
Compatible Drive Type
  • 3.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II HDD (with optional 2.5" Disk Holder)
  • 2.5" SATA III / SATA II SSD (with optional 2.5" Disk Holder)
Maximum Internal Raw Capacity 16 TB (8 TB HDD X 2) (Capacity may vary by RAID types)
RAID Management through Synology DSM
External Ports
eSATA port 1
Appearance
Size 165 mm X 100 mm X 225.5 mm
Weight 0.87 kg
Power
Power Recovery Synchronized with the Synology DiskStation
Power Supply Unit / Adapter 65W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 21 W (Access)
6 W (HDD Hibernation)
2 W (Deep Sleep)
British Thermal Unit 71.65 BTU/hr (Access)
20.47 BTU/hr (HDD Hibernation)
6.82 BTU/hr (Deep Sleep)
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -10°C to 70°C (15°F to 155°F)
Relative Humidity 5% to 95% RH
Others
System Fan 92 mm X 92 mm X 1 pcs
Easy Replacement System Fan
Noise Level 19 dB(A)
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 2 Years
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • User's Guide X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • Expansion Cable: eSATA X 1
Optional Accessories Disk Holder: Type C

Documentation:

Download the Synology DX213 Data Sheet (PDF).
