DiskStation DS918+
Powerful and scalable 4-bay NAS for growing businesses

DiskStation DS918+

Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

Synology DiskStation DS918+ is a 4-bay NAS designed for small and medium-sized businesses and IT enthusiasts. Powered by a new quad-core processor, DS918+ provides outstanding performance and data encryption acceleration along with real-time transcoding of 4K Ultra HD source contents. Synology DS918+ is backed by Synology’s 3-year limited warranty.

  • Powerful and scalable 4-bay NAS for growing businesses
  • Encrypted sequential throughput at over 225 MB/s reading and 221 MB/s writing
  • Quad-core processor with AES-NI hardware encryption engine
  • 4GB DDR3L-1866 memory, expandable up to 8GB
  • Dedicated M.2 NVMe SSD slots for system cache support
  • Dual 1GbE LAN with failover and Link Aggregation support
  • Scalable up to 9 drives with Synology DX517
  • Advanced Btrfs file system offering 65,000 system-wide snapshots and 1,024 snapshots per shared folder
  • Dual-channel H.265/H.264 4K video transcoding on the fly

High-speed Scalable Storage Server

Synology DS918+ is a 4-bay network attached storage solution equipped with an quad-core processor and 4GB DDR3L memory (expandable up to 8GB). With Link Aggregation enabled, DS918+ delivers great sequential throughput performance at over 226 MB/s reading and 222 MB/s writing. With AES-NI hardware accelerated encryption, DS918+ delivers encrypted data throughput at over 225 MB/s reading and 221 MB/s writing. DS918+ newly supports M.2 NVMe 2280 SSDs, allowing fast system cache creation without occupying internal drive bays.

DS918+ can support up to 9 drives when connected to one Synology DX5172 expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.

Btrfs: Next Generation Storage Efficiency

DS418play introduces the Btrfs file system, bringing the most advanced storage technologies to meet the management needs of modern businesses:

  • Built-in data integrity check detects data and file system corruption with data and meta-data checksums and improve the overall stability.
  • Flexible Shared Folder/User Quota System provides comprehensive quota control over all user accounts and shared folders.
  • Advanced snapshot technology with customizable backup schedule allows up to 1,024 copies of shared folder backups in a minimum 5-minute interval without occupying huge storage capacity and system resources.
  • File or folder level data restoration brings huge conveniences and saves time for users who wish to restore only a specific file or folder.
  • File self-healing: Btrfs file system can auto-detect corrupted files with mirrored metadata, and recover broken data using the supported RAID volumes, which include RAID1, 5, 6, and 10.

Comprehensive Business Applications

Powered by the innovative Synology DiskStation Manager (DSM), DS918+ comes fully-equipped with applications and features designed specifically for small or growing businesses:

  • Windows AD and LDAP support allow easy integration with existing business directory services, without needing to recreate user accounts.
  • Windows ACL support provides fine-grained access control and efficient privilege settings, allowing DS918+ to fit seamlessly into current infrastructure.
  • Internet file access is simplified by the encrypted FTP server and Synology File Station, a web-based file explorer. HTTPS, firewall, and IP auto-block support ensure file sharing over the Internet is protected with a high level of security.
  • Application Privileges controls access to applications and packages based on each individual account, user group, or IP address.
  • MailPlus allows your business to set up a secure, reliable, and private mail server while giving your employees a modern mail client for receiving and sending messages.
  • The powerful Collaboration Suite integrates Synology Office, Calendar, and Chat, ensuring secure and effective private communications and allowing your organizations to easily manage and control relevant contents.

Virtualization Solutions

Synology’s Virtual Machine Manager opens up abundant possibilities, allowing you to set up and run various virtual machines, including Windows, Linux, and Virtual DSM. You can also test new software versions in a sandbox environment, isolate your customers' machines, and increase the flexibility of your DS918+ with reduced hardware deployment and maintenance costs.

Synology iSCSI storage fully supports most of the virtualization solutions, enhancing work efficiency with an intuituve management interface. VMware vSphere 6.5 and VAAI integration help offload storage operations and optimize computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate, while OpenStack Cinder support transforms your Synology NAS into a block-based storage component.

4K Ultra HD Multimedia Library

Synology DiskStation DS918+ features real-time transcoding for up to 2 channels of H.264/H.265 4K videos at the same time, bringing more powerful support to the latest multimedia formats and contents. With Video Station, you can organize personal digital video library with comprehensive media information, and watch 4K Ultra HD movies and films. The intuitive design of Photo Station allows you to effortlessly organize photos into customized categories, smart albums and blog posts, and link them to social networking websites within a few clicks. Audio Station comes with Internet radio and lossless audio formats support, and provides music playback via DLNA and AirPlay-compliant devices.

Features:

High-speed scalable storage server

Synology DS918+ is designed for small and medium-sized businesses and IT enthusiasts. With a powerful built-in AES-NI hardware encryption engine, DS918+ provides exceptional encrypted file transmission. Also capable of transcoding up to two channels of H.265/H.264 4K videos at the same time, DS918+ is ideal for sharing and storing ultra-high definition media content.

Satisfy your need for performance and capacity

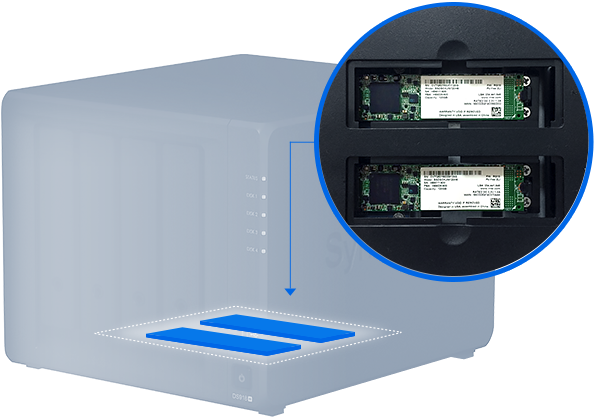

DS918+ supports up to two M.2 NVMe 2280 SSDs, allowing fast system cache creation without occupying internal drive bays. Scalable up to 9 drives with a Synology Expansion Unit DX517, DS918+ answers the need for flexible storage capacity.

Satisfy your need for performance and capacity

Btrfs: Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

  • Flexible Shared Folder / User Quota System provides comprehensive quota control on user accounts and shared folders
  • Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
  • File- or folder-level data restoration accelerates data recovery, providing more flexibility for businesses
  • Automatic file self-healing detects and recovers corrupted files without user intervention

Digital asset protection

Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.

  • Security Advisor
    Analyzes system settings, password strength, network preferences, and removes any possible malware.
  • AppArmor
    A kernel-level enhancement that blocks malicious programs from accessing unauthorised system resources.
  • AES 256-bit encryption
    Encrypt shared folders and network data transmission to keep data from unauthorised access.
  • 2-step verification
    Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device.
  • Trust Level
    Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.
Digital asset protection

Synchronize files across your devices

Cloud Station Suite provides real-time data synchronization across all your devices, such as computers, mobile devices, and other Synology NAS whenever a file is modified. "Intelliversioning" keeps the most important file versions to better utilize storage space.

Cloud Station Sharesync

Cloud Station Sharesync

Cloud Station Drive

Cloud Station Drive

Cloud Station Server

Cloud Station Server

DS Cloud

DS Cloud

4K Multimedia Server

Access and stream your 4K media content anytime and anywhere. DS918+ supports 4K H.264/H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on the fly on other computers, smartphones, and media players that originally do not support Ultra HD formats.

4K Multimedia Server

Powered by Synology DSM

Surveillance Station

Surveillance Station

Complete surveillance solution for recording, monitoring, and management.

Collaboration Suite

Collaboration Suite

Synology Office, Calendar and Chat guarantee a secure and high-performance private communication and user-friendly content organization.

All-in-one server

All-in-one server

Save additional investment by integrating various network services, web/mail services, management applications into your NAS.

DSM UI

DSM UI

Award-winning operating system with an intuitive user interface and powerful capabilities.

Desktop Backup

Desktop Backup

Simplified backup solution for your Mac, PC, and mobile devices.

Security

Security

Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.


Product Views:

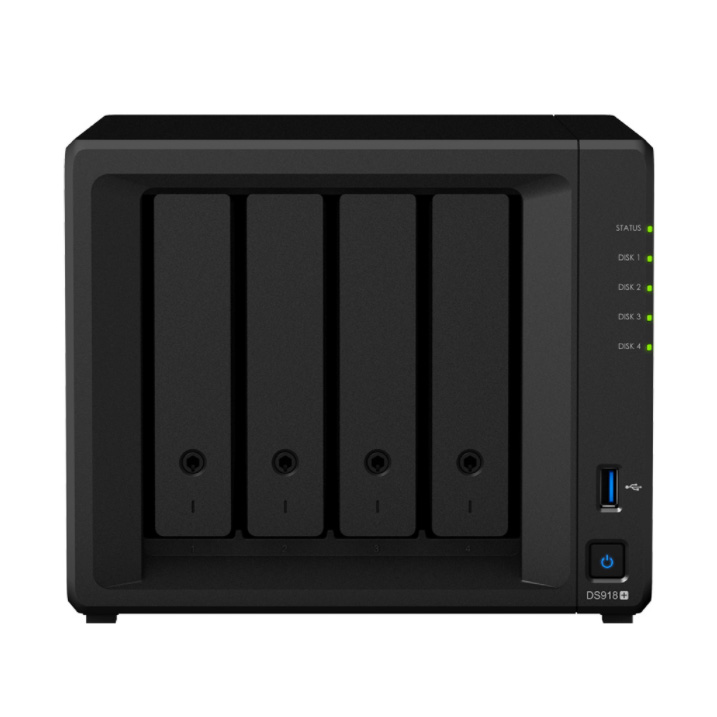

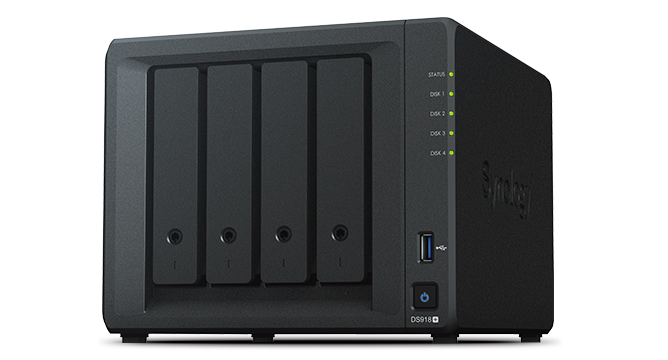

DS918+ Front View"class="img-responsive center-block

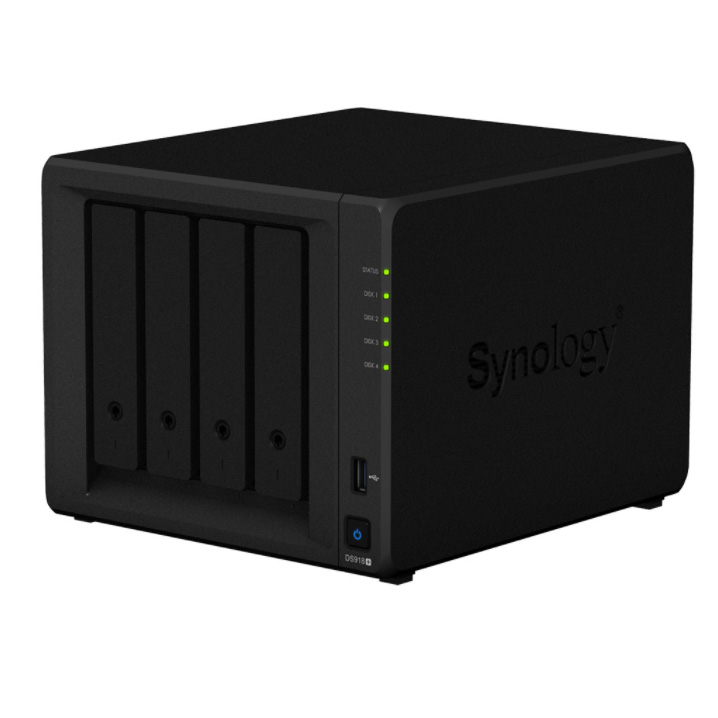

DS918+ Left View"class="img-responsive center-block

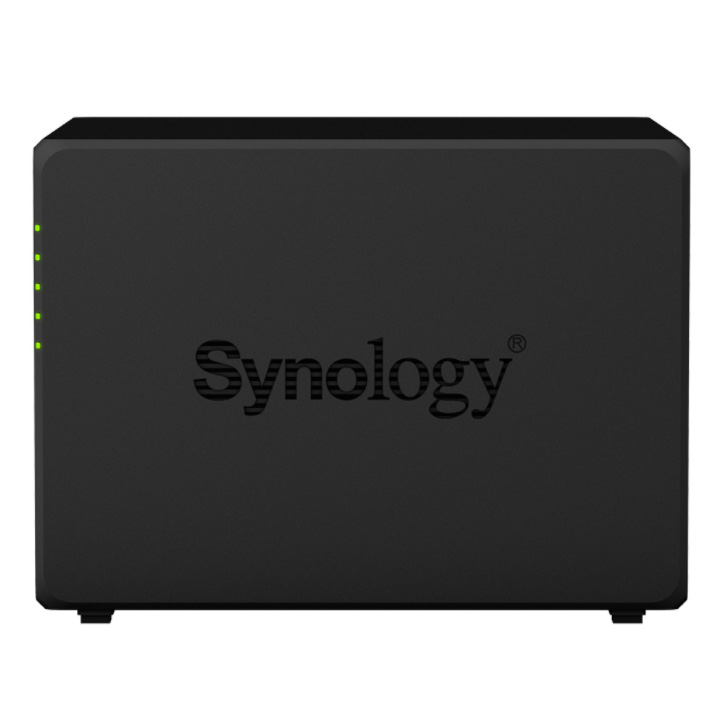

DS918+ Left Side View"class="img-responsive center-block

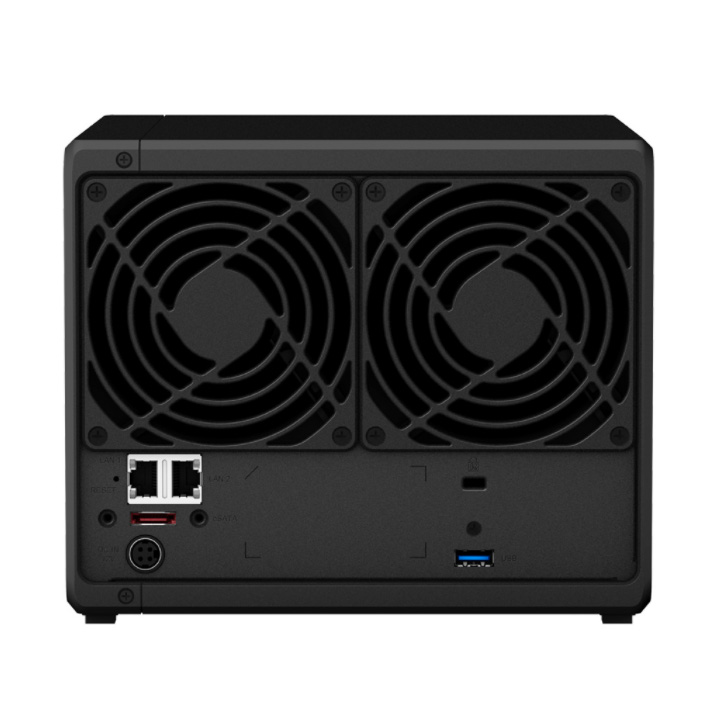

DS918+ Rear View

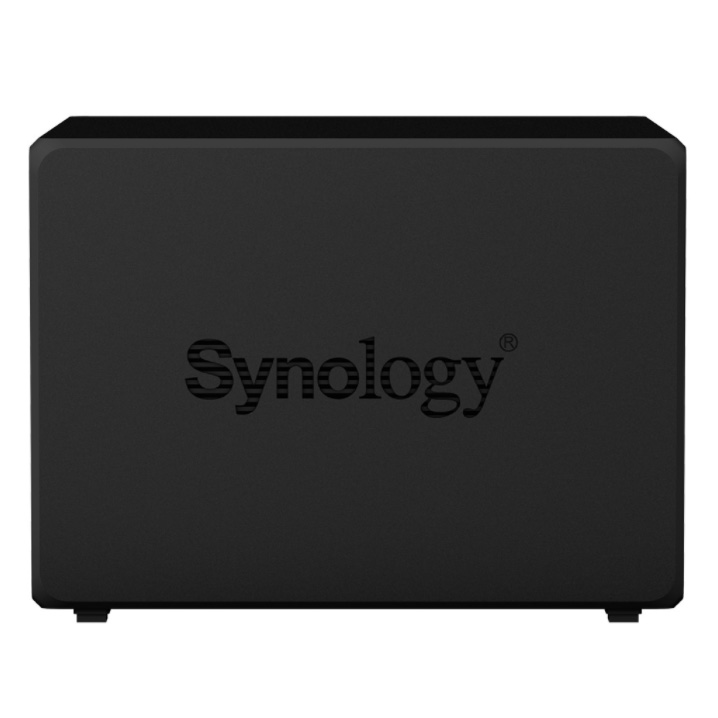

DS918+ Right Side View

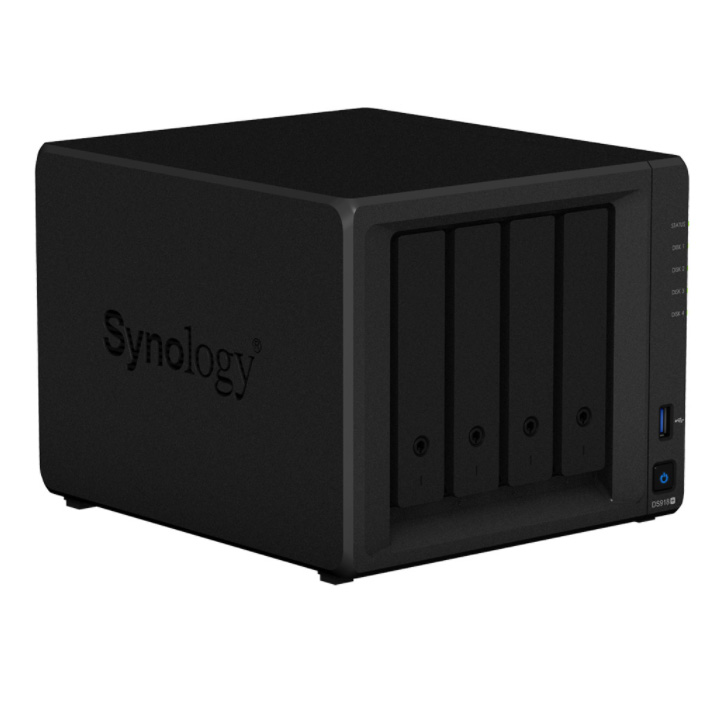

DS918+ Right View

Technical Specifications:

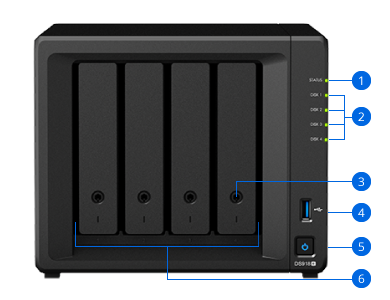

Front View

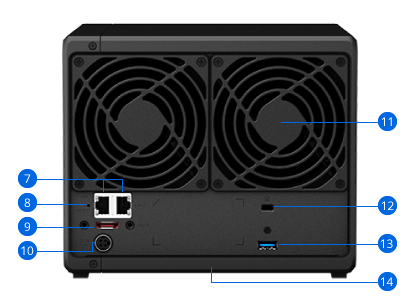

Rear View
  1. Status indicator
  2. Drive status indicator
  3. Drive tray lock
  4. USB 3.0 port
  5. Power button and indicator
  6. Drive tray
  7. 1GbE RJ-45 port
  8. Reset button
  9. eSATA port
  10. Power port
  11. Fan
  12. Kensington Security Slot
  13. USB 3.0 port
  14. M.2 NVMe SSD slot (bottom side)
Hardware Specifications:
CPU
CPU Model Intel Celeron J3455
CPU Architecture 64-bit
CPU Frequency Quad Core 1.5 burst up to 2.3 GHz
Hardware Encryption Engine (AES-NI)
Hardware Transcoding Engine H.264 (AVC), H.265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30
Memory
System Memory 4 GB DDR3L
Memory Module Pre-installed 4GB (1 x 4GB)
Total Memory Slots 2
Memory Expandable up to 8 GB (4 GB x 2)
Storage
Drive Bay(s) 4
Maximum Drive Bays with Expansion Unit 9
M.2 Drive Slots 2
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 NVMe 2280 SSD
Maximum Internal Raw Capacity 40 TB (10 TB HDD x 4) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 90 TB (10 TB drive x 9) (Capacity may vary by RAID types)
Maximum Single Volume Size 108 TB
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum single volume size is not directly related to the maximum raw capacity.
  • Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108TB.
External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 2
eSATA Port 1
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes
  • exFAT Access is purchased separately in Package Center.
Appearance
Size (Height X Width X Depth) 166 mm x 199 mm x 223 mm
Weight 2.28 kg
Others
System Fan 92 mm x 92 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness adjustable front LED indicators
Power Recovery
Noise Level 19.8 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 100W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 28.8 W (Access)
12.6 W (HDD Hibernation)
British Thermal Unit 98.27 BTU/hr (Access)
42.99 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Other
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 3 Years
Notes Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
General DSM Specifications:
Networking protocol SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN , L2TP)
File system
  • Internal: Btrfs, ext4
  • External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT3
Supported RAID type Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Storage management
  • Maximum internal volume: 512
  • Maximum iSCSI Target: 32
  • Maximum iSCSI LUN: 256
  • iSCSI LUN clone/snapshot support
File sharing capability
  • Maximum user account: 2048
  • Maximum group: 256
  • Maximum shared folder: 512
  • Maximum concurrent CIFS/AFP/FTP/File Station connection: 1,000
Privilege Windows Access Control List (ACL), application privilege
Directory service Windows AD Integration: Domain Users login via Samba (CIFS)/AFP/FTP/File Station, LDAP integration
Virtualization VMware vSphere 6.5, Microsoft Hyper-V, Citrix, OpenStack
Security Firewall, encrypted shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (Customizable cipher suite)
Supported client Windows 7 and 10, Mac OS X 10.11 onwards
Supported browser Chrome, Firefox, Internet Explorer: 10 onwards, Safari 10 onwards, Safari (iOS 10 onwards), Chrome (Android 6.0 onwards)
Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český
Packages and Applications:
File Station Virtual drive, remote folder, Windows ACL editor, compress/extract archived files, bandwidth control for specific users or groups, create sharing links, transfer logs
FTP Server Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocols, boot over the network with TFTP and PXE support, transfer logs
Universal Search Offer global search into applications and files
Hyper Backup Support local backup, network backup, and backup data to public clouds
Active Backup for Server Centralize data backup for Windows and Linux servers without client installation
Backup tools DSM configuration backup, macOS Time Machine support, Cloud Station Backup
Shared folder sync - maximum tasks: 8
Cloud Station Suite Sync data between multiple platforms by installing the client utilities on Windows, Mac, Linux, Android and iOS devices, while retaining up to 32 historical versions of files
Maximum concurrent file transfers: 1,000
Cloud Sync One or two-way synchronization with public cloud storage providers including Amazon Drive, Amazon S3-compatible storage, Baidu cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, WebDAV servers, Yandex Disk
Surveillance Station Maximum IP cameras: 40 (total of 1,200 FPS at 720p, H.264) (includes two free camera licenses; additional cameras require the purchasing of additional licenses)
Virtual Machine Manager Deploy and run various virtual machines on Synology NAS, including Windows, Linux, or Virtual DSM
High Availability Manager Reduce service downtime by setting up two identical NAS into one high-availability cluster
Snapshot Replication
  • Maximum replications: 64
  • Maximum shared folder snapshots: 1,024
  • Maximum system snapshots: 65,536
Active Directory Server A flexible and cost-effective domain controller solution
VPN Server Maximum connections: 20, supported VPN protocol: PPTP, OpenVPN, L2TP/IPSec
MailPlus Server Secure, reliable, and private mail solution with high-availability, load balancing, security and filtering design (Includes 5 free email account licenses; additional accounts require the purchasing of additional licenses)
MailPlus Intuitive webmail interface for MailPlus Server, customizable mail labels, filters, and user interface
Collaboration tools
  • Chat maximum users: 1,500
  • Office maximum users: 200, maximum simultaneous editing users: 80
  • Calendar: support CalDAV and access via mobile devices
Note Station Rich-text note organization with versioning, encryption, sharing, media embedding and attachments
Storage Analyzer Volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, largest/most/least frequently modified files
Antivirus Essential Full system scan, scheduled scan, white list customization, virus definition auto update
Download Station Supported download protocols: BT, HTTP, FTP, NZB, eMule, Thunder, FlashGet, QQDL
Maximum concurrent download tasks: 80
Web Station Virtual host (up to 30 websites), PHP/MariaDB, 3rd-party applications support
Other packages Video Station, Photo Station, Audio Station, DNS Server, RADIUS Server, iTunes Server, Log Center, additional 3rd-party packages are available on Package Center
iOS/Android applications DS audio, DS cam, DS cloud, DS file, DS finder, DS get, DS note, DS photo, DS video, MailPlus
Windows Phone applications DS audio, DS file, DS finder, DS get, DS photo, DS video
Environment & Packaging:
Environment RoHS Compliant
Packaging Content
  • DS918+ main unit x 1
  • Quick Installation Guide x 1
  • Accessory pack x 1
  • AC power adapter x 1
  • RJ-45 LAN cable x 2
Optional Accessories
  • D3NS1866L-4G
  • Expansion Unit DX517
  • VisualStation VS360HD, VS960HD
  • Surveillance Device License Pack
  • MailPlus License Pack

*Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
1 Performance figures may vary depending on environment, usage and configuration.
2 DS918+ supports one Synology DX517, sold separately.
3 DS918+ can transcode 4K video to 1080p or lower. The maximum number of concurrent video transcoding channels supported may vary depending on the video codec, resolution, bitrate and FPS.
4 exFAT Access is purchased separately in Package Center.

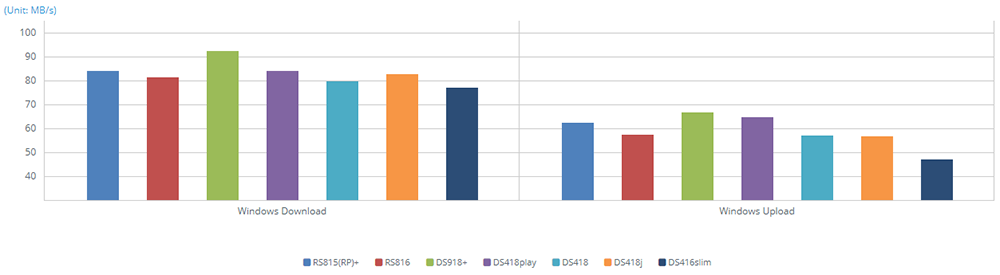

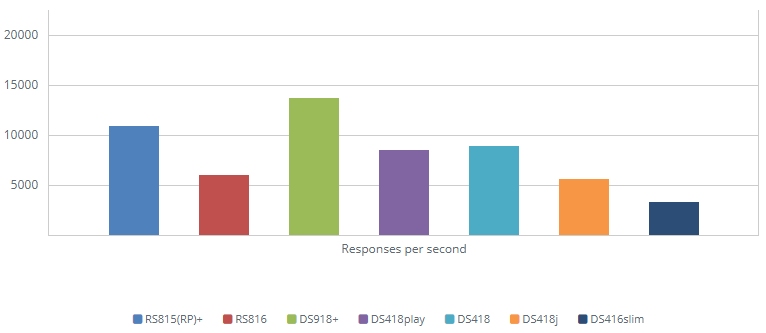

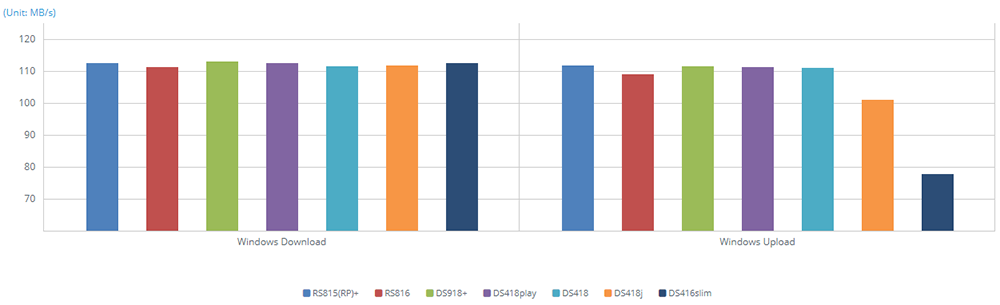

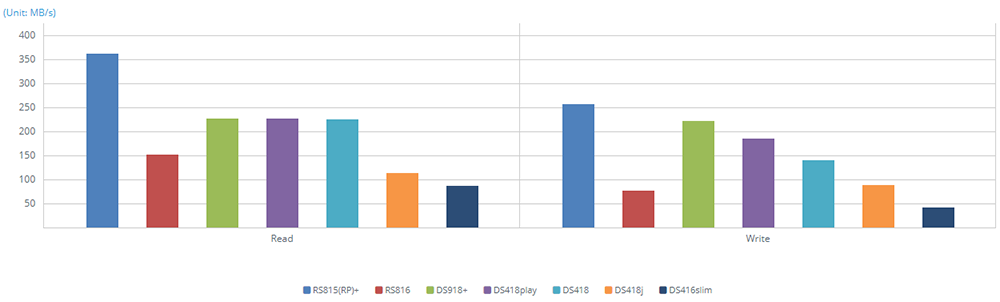

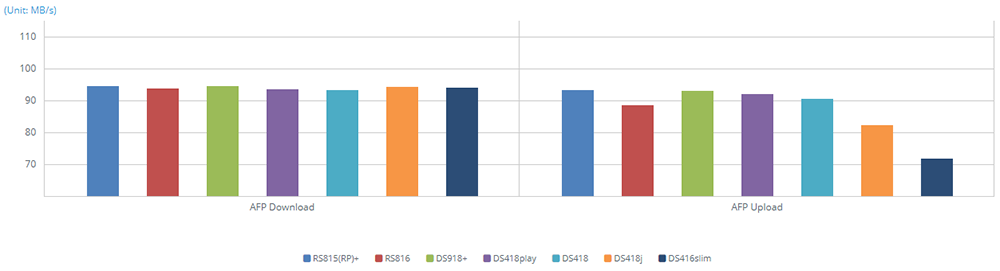

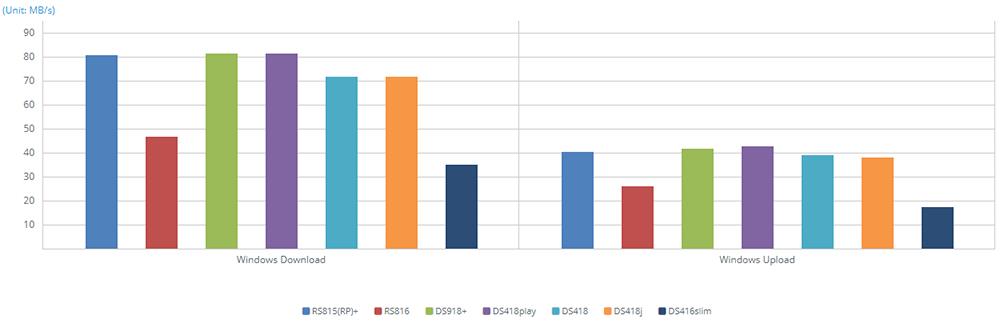

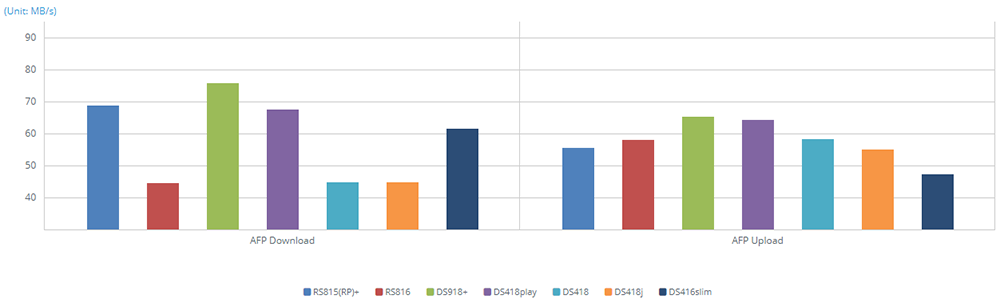

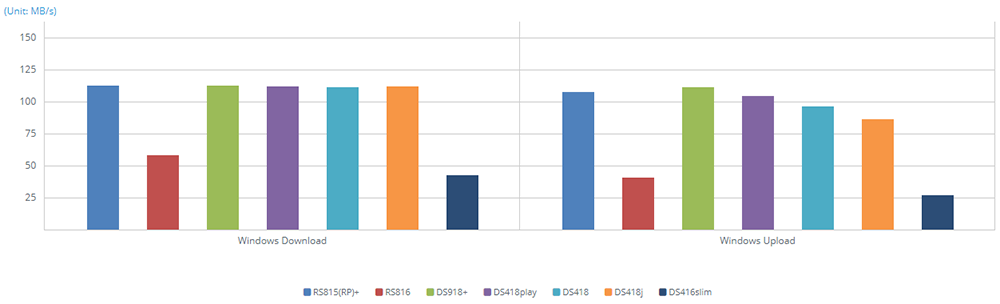

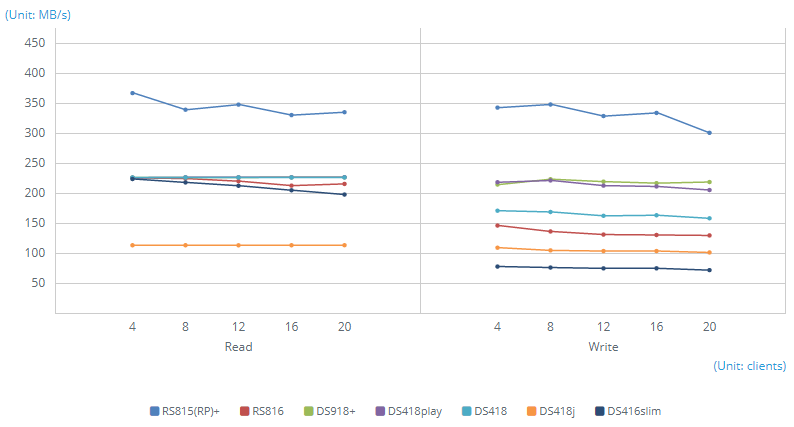

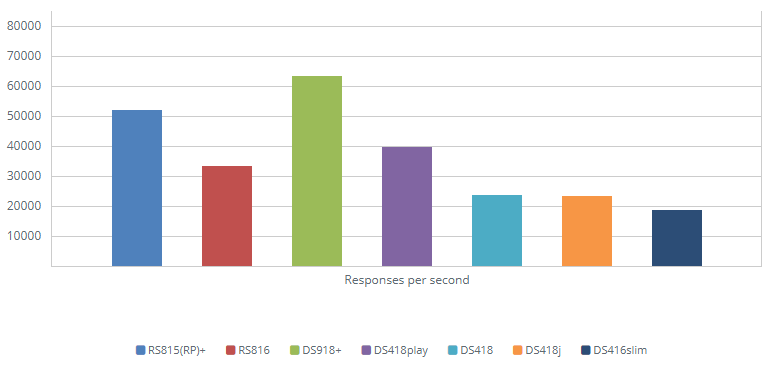

Performance:

4-bay NAS

Synology strives to enhance the performance of our NAS with every software update, even long after a product is launched. For enterprises and users that demand uncompromising performance from their servers, check the figures below to find the most suitable choice.

1GbE SMB - Sequential Throughput (64KB)

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
Read 366.47 225.27 226.07 226.02 226.29 112.94 223.31
Write 347.53 145.76 222.98 170.49 220.84 108.88 77.49

1GbE SMB - Sequential Throughput (64KB)

1GbE SMB - Sequential Throughput via Encrypted Shared Folder (64KB)

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
Read 361.42 151.18 226.05 224.78 226.09 112.78 86.7
Write 255.91 76.76 221.8 139.73 185.64 87.79 42.49

1GbE SMB - Sequential Throughput via Encrypted Shared Folder (64KB)

1GbE SMB - Windows File Transfer (3GB file x 1)

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
Windows Download 112.57 111.23 112.92 111.53 112.38 111.68 112.61
Windows Upload 111.8 109.04 111.41 110.89 111.23 100.99 77.81

1GbE SMB - Windows File Transfer (3GB file x 1)

1GbE SMB - Windows File Transfer (1MB file x 3000)

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
Windows Download 84.08 81.43 92.5 79.75 83.95 82.72 76.94
Windows Upload 62.43 57.48 66.62 56.97 64.77 56.65 47.01

1GbE SMB - Windows File Transfer (1MB file x 3000)

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (3GB file x 1)

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
Windows Download 112.27 57.82 112.38 111.3 112.14 111.68 42.45
Windows Upload 107.2 40.75 111.34 96.24 104.3 86.19 26.99

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (3GB file x 1)

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (1MB file x 3000)

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
Windows Download 80.67 46.66 81.38 71.77 81.38 71.83 35.13
Windows Upload 40.21 25.91 41.52 38.87 42.62 37.99 17.48

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (1MB file x 3000)

1GbE AFP - Mac File Transfer (3GB file x 1)

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
AFP Download 94.51 93.79 94.42 93.25 93.61 94.16 94.12
AFP Upload 93.28 88.58 92.95 90.47 91.92 82.15 71.75

1GbE AFP - Mac File Transfer (3GB file x 1)

1GbE AFP - Mac File Transfer (1MB file x 3000)

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
AFP Download 68.75 44.51 75.85 44.65 67.45 44.86 61.42
AFP Upload 55.4 57.92 65.22 58.32 64.2 54.96 47.3

1GbE AFP - Mac File Transfer (1MB file x 3000)

1GbE Web Server - HTML Response Efficiency

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
Responses per second 52010.11 3333.06 63488.82 23824.99 39699.81 23430.09 18668.92

1GbE Web Server - HTML Response Efficiency

1GbE Web Server - PHP Response Efficiency

Model RS815(RP)+ RS816 DS918+ DS418 DS418play DS418j DS416slim
Responses per second 10934.26 5996.57 13690.33 8874.15 8457.31 5585.42 3317

1GbE Web Server - PHP Response Efficiency

NAS:

  • Operating System: DSM 6.1
  • Volume Type: RAID 5 (4 bay), RAID 1 (2 bay), Basic (1 bay)
  • Drives:
    • DS416slim: Fully loaded with Intel 535 Series 240GB SSDSC2BW240H6 SSD
    • Other models: Fully loaded with Seagate ST6000VN0001 6TB HDD
  • File System:
    • EXT4:
      • [1-bay] DS116, DS115j
      • [2-bay] RS217, DS216, DS216play, DS216j, DS216se
      • [4-bay] RS816, DS418, DS418j, DS416slim
    • Btrfs:
      • [2-bay] DS718+, DS218+
      • [4-bay] RS815(RP)+, DS918+, DS418play
  • 1GbE Network Environments:
    • For models with single 1GbE LAN port: MTU 1500; connected to 1 client PC via HP 2530-48G switch
    • For models with multiple 1GbE LAN ports: Link Aggregation is enabled for Sequential Throughput tests; MTU 1500; connected to client PCs via HP 2530-48G switch

Client PC:

  • 1GbE SMB Network Environments:
    • For NAS models with single 1GbE LAN port: Intel Core i7-3770 3.40GHz; 32GB DDR3-1866; RAMdisk with 14GB source partition and 14GB target partition; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
    • For NAS models with multiple 1GbE LAN ports: Intel Core i7-3770 3.40GHz; 4GB DDR3-1600; Intel 520 (120GB) SSD x 2; striped volume; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
  • IOMeter setting for Sequential Throughput tests: Continuously read from/write to a single 8GB file for 3 minutes; Block size: 64KB
  • 1GbE Web Server Network Environment:
    • Intel Core i7-6700 3.40GHz; 16GB DDR4-2133; Intel Gigabit CT; MTU 1500; Ubuntu 16.04
    • (html) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark" http://DS_IP/index.html
    • (php) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark"http://DS_IP/echo.php
  • 1GbE AFP Network Environment: Mac Mini; 2.3GHz 4 core Intel Core i7; 16GB DDR3-1600; RAMdisk with 7GB source partition and 4GB target partition; MTU 1500; OSX 10.9

Special Note:

  • Performance figures are achieved in the Synology lab by using very powerful client computers with optimized network settings, and could vary in different environments. Regular office desktop or notebook computers may not be able to reproduce these figures.

Documentation:

Download the Synology DiskStation DS918+ Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
