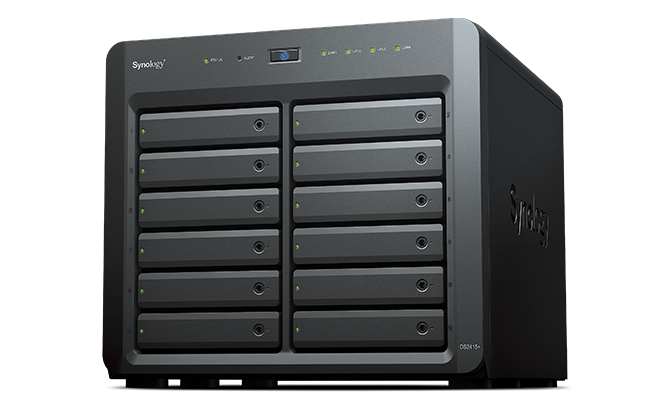

DiskStation DS2415+
High performance desktop NAS optimized for businesses

DiskStation DS2415+

Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

Synology DiskStation DS2415+ features an all-new quad core CPU with an AES-NI hardware encryption engine, providing outstanding performance and data encryption acceleration. With four built-in Gigabit LAN ports and scalability of up to 24 drives, Synology DS2415+ is the ideal storage solution for centralizing data backups, protecting critical assets and sharing files across different platforms. Synology DS2415+ is backed with Synology’s 3-year limited warranty.

  • Quad Core CPU Delivers 451.5 MB/s Reading, 415.49 MB/s Writing
  • AES-NI Hardware Encryption Engine Boosts Encryption Transfer at over 451.21 MB/s Reading, 198.46 MB/s Writing
  • Four Gigabit LAN Ports with Failover and Link Aggregation Support
  • Scale up to 24 drives with Synology DX1215
  • Expandable RAM Module (Up to 6GB)
  • VMware, Citrix , Microsoft Hyper-V Certified
  • High Availability and SSD Read/Write Cache Support
  • Running on Synology DiskStation Manager (DSM)

Safeguards Your Big Data with Superior Performance

In the era of big data, finding a place to store and share tones of business files while maintaining data safety is extremely important for small and medium-sized businesses, and Synology DS2415+ is the ideal solution. With a brand-new quad core CPU, built-in AES-NI hardware encryption engine and expandable RAM module up to 6GB, DS2415+ delivers up to an average 451.5 MB/s reading and 415.49 MB/s writing speed under RAID 5 configuration in a Windows® environment,1 and an encrypted data transmission at over 451.21 MB/s reading and 198.46 MB/s writing.

Virtualization Certified

DS2415+ provides seamless storage solutions for virtualization environments, including VMware®, Citrix®, and Hyper-V®. Being VMware vSphere® 5 and VAAI® integration certified, DS2415+ helps offload specific storage operations and optimizes computation power for unparalleled performance and efficiency in VMware environments. As the centralized storage of a virtual environment, DS2415+ enables virtual machine migration, allowing movement from server to server whilst eliminating service downtime and disruption to user. Windows® Offloaded Data Transfer (ODX) and Synology Advanced LUN support extremely improves the efficiency on massive data transfer and migration.

Feature-Rich Business Applications

Put your data to work with Synology’s DS2415+. With Windows® ACL and LDAP support, DS2415+ fits easily into any existing workgroup environment, providing detailed access control and efficient privilege settings. SMB applications including printer sharing, VPN Server, Mail Server, web server, anti-virus, and network video surveillance, allow a single Synology DS2415+ to replace several traditional computing devices and help to maximumimize your productivity while keeping cost and effort to a minimum.

Resilient and Reliable

In addition to its superior performance, DS2415+ is built for reliability. Four Gigabit LAN ports provide redundancy in the event of unexpected hardware failure while hot swappable drives also help to minimize system downtime during drive replacement.

Uninterrupted availability is a critical goal for all businesses; however, many businesses worldwide still remain unprepared for disaster. High Availability Manager can ensure a seamless transition between clustered servers in the event of server failure with minimal impact to applications, thus decreasing the risk of unexpected interruptions and costly downtime.

Unparalleled Flexibility

As your data storage needs grow, Synology’s DS2415+ can grow with you. DS2415+ can be connected to dedicated expansion units for additional storage on the fly, growing capacity with minimal effort. When paired with Synology DX1215 expansion units2 through specially designed expansion cable, raw capacity can be as high as 144TB.

Easy Backup Solutions

To protect your critical business data, DS2415+ can become a centralized backup target for consolidating fragmented and unstructured information across your network through a range of options. Advanced backup privilege management makes network backup tasks safer and efficient. Cloud Station with selective sync and ACL control provides real-time data backup and synchronization among multiple computers and mobile devices. Complete backup solutions including Scheduled LUN Snapshot, LUN clone and Backup & Replication minimize the impact of disasters.

Energy Efficient and Easy Management Design

Synology DS2415+ is designed with energy efficiency in mind. Equipped with a fast detachable fan module with two 120 X 120mm fans and a smart airflow design, DS2415+ runs cool 24/7, while its noise dampening design makes it much quieter than PC counterparts. Hard drive hibernation further reduces power consumption and operation costs. Screwless drive trays make failed drive replacement fast and tool-free.

All Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. Synology acknowledges the responsibility as a global citizen to continually work to reduce the environmental impact of every product produced.

Features:

Powerful centralized storage solution

Synology DS2415+ is a powerful 12-bay, desktop NAS powered by an Intel quad-core processor. Supporting AES-NI acceleration for fast encryption performance, DS2415+ is built to handle multiple services and high storage capacities.

Real-time collaboration on your private cloud

Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

Real-time collaboration on your private cloud

Flexible storage scalability

As your data storage needs grow, DS2415+ can be connected with a DX1215 expansion unit for additional storage on the fly, allowing up to 24 drives to be installed with minimal effort.

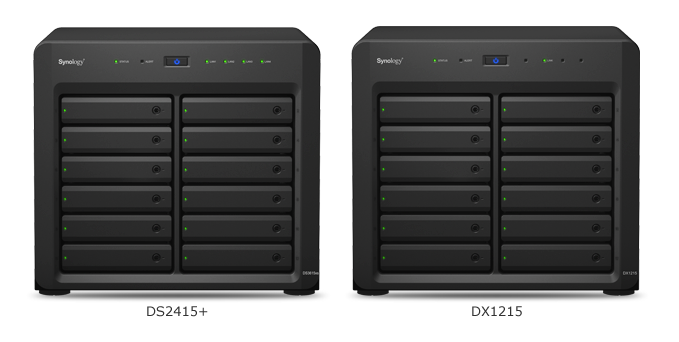

Robust scalability up to 24 drives

Ultimate file management and sharing

File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any environment.

Ultimate file management and sharing

Btrfs: Next generation storage efficiency

Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:

  • Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
  • Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
  • File or folder level data restoration makes data recovery fast and flexible
  • Automatic file self-healing detects and recovers corrupted files without user intervention

Powered by Synology DSM

Surveillance Station

Surveillance Station

Complete surveillance solution for recording, monitoring, and management.

Desktop Backup

Desktop Backup

Simplified backup solution for your Mac, PC, and mobile devices.

Public Cloud Integration

Public Cloud Integration

Backup and synchronize data easily between your public cloud accounts and your NAS.

DSM UI

DSM UI

Award-winning operating system with an intuitive user interface and powerful capabilities.

Security

Security

Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.

All-in-one server

All-in-one server

Save additional investment by integrating various network services, web/mail services, management applications into your NAS.

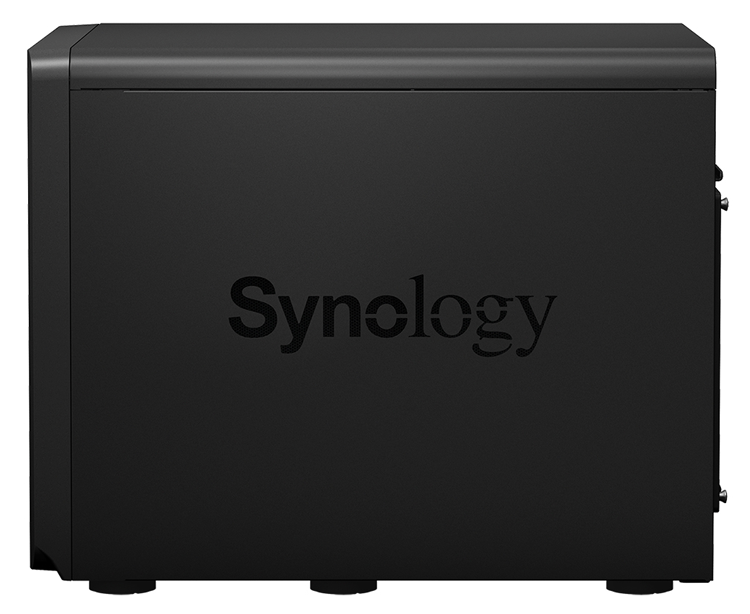

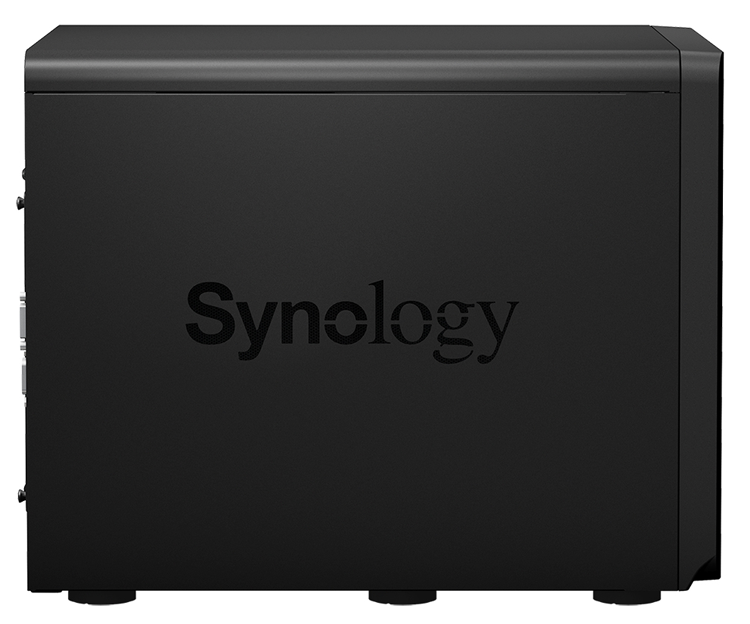

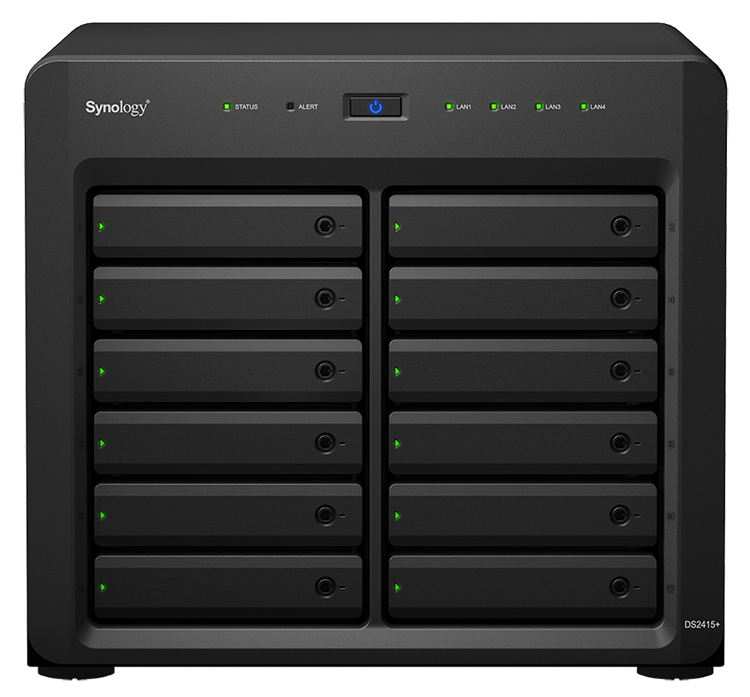

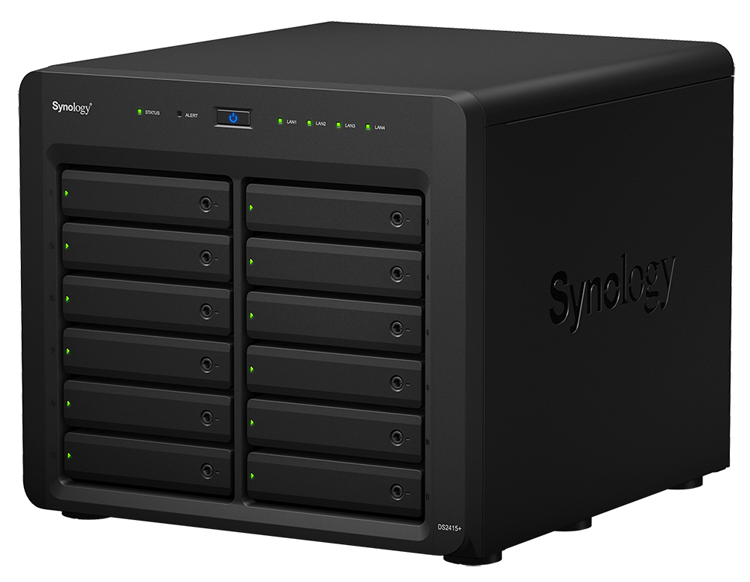

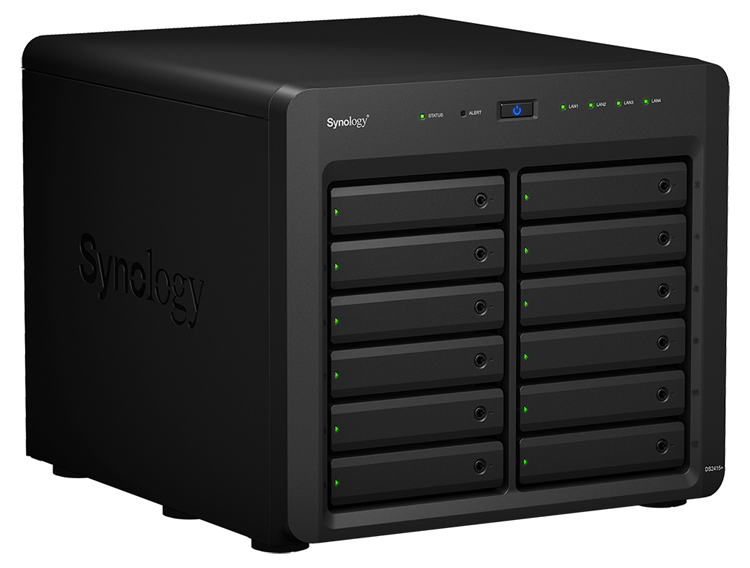

Product Views:



Technical Specifications:

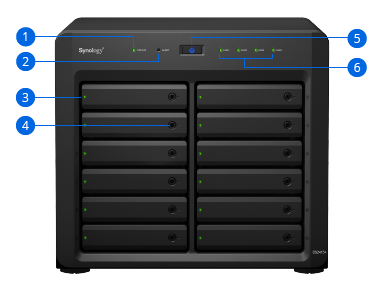

Front View

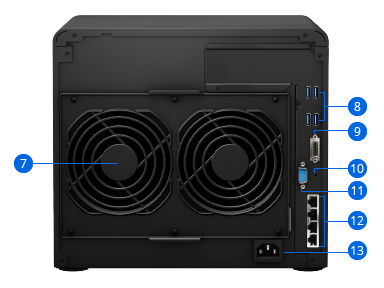

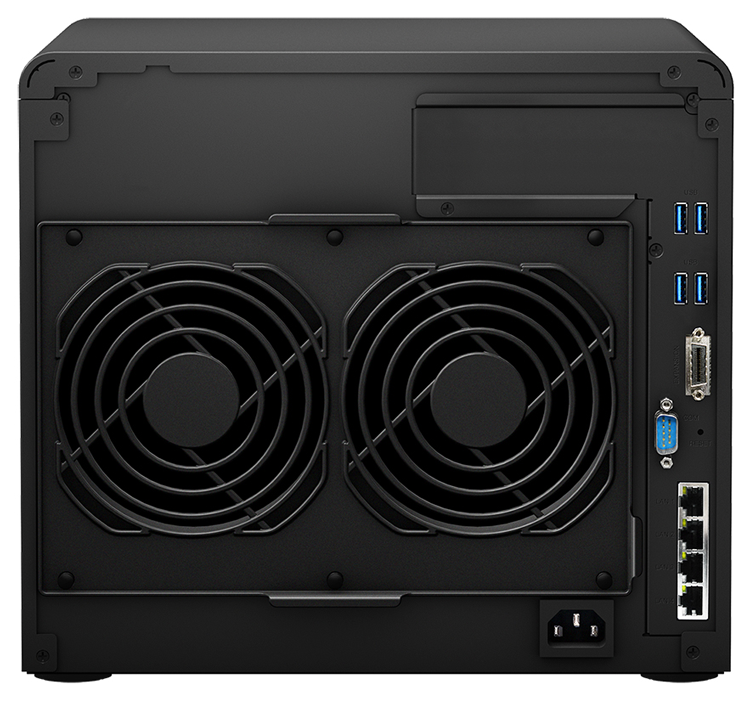

Rear View
  1. Status indicator
  2. Alert indicator
  3. Drive status indicator
  4. Drive tray lock
  5. Power button and indicator
  6. LAN indicator
  7. Fan
  8. USB 3.0 port
  9. Expansion port
  10. Reset button
  11. Console port
  12. 1GbE RJ-45 port
  13. Power port
Hardware Specifications:
CPU
CPU Model Intel Atom C2538
CPU Architecture 64-bit
CPU Frequency Quad Core 2.4 GHz
Hardware Encryption Engine
Memory
System Memory 2 GB DDR3
Memory Module Pre-installed 2GB (1 x 2GB)
Total Memory Slots 2
Memory Expandable up to 6 GB (2 GB + 4 GB)
Storage
Drive Bay(s) 12
Maximum Drive Bays with Expansion Unit 24
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 120 TB (10 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 240 TB (10 TB drive x 24) (Capacity may vary by RAID types)
Maximum Single Volume Size 108 TB
Hot Swappable Drive
External Ports
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.0 Port 4
eSATA Port 1
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes
  • exFAT Access is purchased separately in Package Center.
Appearance
Size (Height X Width X Depth) 270 mm x 300 mm x 340 mm
Weight 9.24 kg
Others
System Fan 120 mm x 120 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness adjustable front LED indicators
Power Recovery
Noise Level 27.1 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 73.44 W (Access)
37.13 W (HDD Hibernation)
British Thermal Unit 250.59 BTU/hr (Access)
126.70 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Other
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 3 Years Hardware Warranty
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
General DSM Specifications:
Networking protocol CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN , L2TP)
File system
  • Internal: ext4
  • External: ext4, ext3, FAT, NTFS, HFS+
Storage management
  • Maximum Single Volume Size: 108 TB
  • Maximum Internal Volume #: 512
  • Maximum iSCSI Target #: 32
  • Maximum iSCSI LUN#: 256
  • Raid Clone/Snapshot support
  • Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  • Synology Expansion Unit Support : DX513, DX213
File sharing capability
  • Maximum user account: 2048
  • Maximum group: 256
  • Maximum shared folder: 512
  • Maximum concurrent CIFS/AFP/FTP/File Station connection: 512
Privilege Windows Access Control List (ACL)
Directory service Windows AD Integration: Domain Users login via Samba (CIFS)/AFP/FTP/File Station, LDAP integration
Virtualization VMware vSphere 5, Microsoft Hyper-V, Citrix Certified
Security FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection
Utilities Synology Assistant, Cloud Station, Evidence Integrity Authenticator
Supported client Windows XP onward, Mac OS X 10.5 onward, Ubuntu 9.04 onward
Supported browser Chrome, Firefox, Internet Explorer: 9 onwards, Safari 8 onwards, Safari (iOS 7 onwards on iPad), Chrome (Android 4.0 onwards on tablets)
Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český
Packages and Applications:
File Station Virtual Drive, Remote Folder
Backup Solutions Network Backup, Local Backup, Desktop Backup, Shared Folder Sync - Maximum Task Number: 8, Configuration Backup
FTP Server Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log
Antivirus Essential Full System Scan, Scheduled Scan, White List Customization, Virus Definition Auto Update
Cloud Station Maximum Concurrent File Transfers: 512, Retain Historical and Deleted File Versions
Cloud Sync Data Sync with Public Cloud Services: Dropbox, Google Drive, Baidu, Microsoft OneDrive, Box and hubiC
Surveillance Station Default IP cam #: 2, Maximum IP cam # (licenses required): 40 (with two free licenses to install two IP cameras. Additional licenses can be purchased to expand the license quota.)
VPN Server Maximum Connections : 20, VPN Method: PPTP, OpenVPN
Mail Server Supported Mail Server Protocols: POP3, SMTP, IMAP
Mail Station Webmail Interface for Mail Server, Receiving Mails from Multiple POP3 Mailboxes, Customizable SMTP Server
Printer Server Maximum Printer #: 2, Printing Protocols: LPR, CIFS, IPP, Apple iOS Printing, Google Cloud Print, Multi Functional Print Server (MFP functions are for Windows PC only)
Log Center SSL Connection, Log Rotation: 6 months, 1 year, 2 years, 3 years, Email Notification
DLNA/UPnP Media Server DLNA compliant, PS3/Xbox 360 supported
Web Station Virtual Host (up to 30 websites), PHP/MySQL, 3rd-Party Applications Support
Note Station Rich-Text Note Organization with Versioning, Encryption, Sharing, Media Embedding and Attachments
Download Station Supported Download Protocols: BT/HTTP/FTP/NZB/eMule
Maximum Concurrent Download Tasks: 80
Web Station Virtual Host (up to 30 websites), PHP/MySQL, 3rd-Party Applications Support
Other packages Photo Station, Audio Station, iTunes Server, 3rd-party packages
iOS/Android applications DS audio, DS cam, DS cloud, DS download, DS file, DS finder, DS photo+, DS video, DS note
Windows Phone applications DS audio, DS file, DS finder, DS get, DS photo, DS video
Environment & Packaging:
Environment RoHS Compliant
Packaging Content
  • DS2415+ main unit
  • Welcome Note
  • Accessory pack
  • AC power adapter
  • RJ-45 LAN cable x 2
Optional Accessories
  • Remote,
  • Camera License Pack
  • Expansion Unit (DX1215)
  • 4GB DDR3 RAM Module

*Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
1 Performance figures could vary on different environments.
2 DS2415+ supports one Synology DX1215, sold separately.

Performance:

5-bay to 12-bay NAS

Synology strives to enhance the performance of our NAS with every software update, even long after a product is launched. For enterprises and users that demand uncompromising performance from their servers, check the figures below to find the most suitable choice.

Aggregated 10GbE SMB - Sequential Throughput (64KB)

Model DS1817+ (8GB) DS1817+ (2GB) DS1517+ (8GB) DS1517+ (2GB) DS1817
Read 1179.13 1080.24 1165.08 1069.65 1577.61
Write 542.73 436.34 527.99 432.58 739.75

Aggregated 10GbE SMB - Sequential Throughput (64KB)

10GbE iSCSI - Random IOPS (4KB)

Model DS1817+ (8GB) DS1817+ (2GB) DS1517+ (8GB) DS1517+ (2GB) DS1817
Read 28376.48 27509.97 27628.06 27185.71 27442.57
Write 24874.58 22580.64 19172.68 19975.26 12496.52

10GbE iSCSI - Random IOPS (4KB)

1GbE SMB - Sequential Throughput (64KB)

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
Read 450.08 449.74 450.19 427.81 442.15 436.32
Write 400.46 396.19 400.93 384.7 405.8 449.69

1GbE SMB - Sequential Throughput (64KB)

Aggregated 1GbE SMB - Sequential Throughput via Encrypted Shared Folder (64KB)

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
Read 427.49 425.5 425.12 411.09 344.22 334.16
Write 267.4 266.31 270.34 260.87 261.08 269.31

Aggregated 1GbE SMB - Sequential Throughput via Encrypted Shared Folder (64KB)

1GbE SMB - Windows File Transfer (3GB file x 1)

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
Windows Download 112.53 112.7 112.14 112.32 111.13 111.2
Windows Upload 111.51 111.72 111.72 111.59 110.39 110.39

1GbE SMB - Windows File Transfer (3GB file x 1)

1GbE SMB - Windows File Transfer (1MB file x 3000)

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
Windows Download 82.06 82.46 85.83 86.49 88.3 87.82
Windows Upload 63.08 62.55 64.54 63.86 66.2 66.71

1GbE SMB - Windows File Transfer (1MB file x 3000)

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (3GB file x 1)

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
Windows Download 111.54 111.62 112.36 112.43 111.32 110.55
Windows Upload 106.39 106.06 108.7 108.9 99.93 99.51

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (3GB file x 1)

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (1MB file x 3000)

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
Windows Download 79.01 79.64 80.87 81.11 81.3 78.47
Windows Upload 40.73 40.89 41.58 41.64 42.01 41.87

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (1MB file x 3000)

1GbE AFP - Mac File Transfer (3GB file x 1)

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
AFP Download 93.47 94.64 93.82 94.43 93.28 94.99
AFP Upload 92.91 92.96 93.23 92.86 92.48 94.91

1GbE AFP - Mac File Transfer (3GB file x 1)

1GbE AFP - Mac File Transfer (1MB file x 3000)

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
AFP Download 67.05 67.99 68.88 69.88 57.98 51.2
AFP Upload 54.23 55.37 55.81 55.98 64.67 57.12

1GbE AFP - Mac File Transfer (1MB file x 3000)

1GbE Web Server - HTML Response Efficiency

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
Responses per second 51013.37 51261.25 51474.37 51183.08 40548.71 38497.32

1GbE Web Server - HTML Response Efficiency

1GbE Web Server - PHP Response Efficiency

Model RS2416(RP)+ DS2415+ DS1817+ (2GB) DS1517+ (2GB) DS1817 DS1517
Responses per second 10773.23 10801.16 10670.82 10785.98 9920.56 9897.51

1GbE Web Server - PHP Response Efficiency

NAS:

  • Operating System: DSM 6.1
  • Volume Type: RAID 5
  • Drives:
    • DS1817+, DS1517+, DS1817: Fully loaded with Intel 535 Series 240GB SSDSC2BW240H6 SSD (10GbE network environments) / Seagate ST6000VN0001 6TB HDD (1GbE network environments)
    • Other models: Fully loaded with Seagate ST6000VN0001 6TB HDD
  • File System:
    • EXT4: DS1817, DS1517
    • Btrfs: RS2416(RP)+, DS1817+, DS1517+, DS2415+
  • Aggregated 10GbE SMB and 10GbE iSCSI Network Environments:
    • DS1817+, DS1517+: 2 x 10GbE ports (1 x Intel X520-DA2 NIC); MTU 9000; connected to client PCs via Juniper QFX5100-48S-AFO switch
    • DS1817: 2 x 10GbE ports (built-in); MTU 9000; connected to client PCs via Netgear M4300-24X24F switch
  • 1GbE Network Environments:
    • For models with single 1GbE LAN port: MTU 1500; connected to 1 client PC via HP 2530-48G switch
    • For models with multiple 1GbE LAN ports: Link Aggregation is enabled for Sequential Throughput tests; MTU 1500; connected to client PCs via HP 2530-48G switch

Client PC:

  • Aggregated 10GbE SMB and 10GbE iSCSI Network Environments: Intel Core i7-4790 3.60GHz; 4GB DDR3-1600; Intel X520-DA2 NIC; MTU 9000; Windows 7 64 bit
  • 1GbE SMB Network Environments:
    • For NAS models with single 1GbE LAN port: Intel Core i7-3770 3.40GHz; 32GB DDR3-1866; RAMdisk with 14GB source partition and 14GB target partition; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
    • For NAS models with multiple 1GbE LAN ports: Intel Core i7-3770 3.40GHz; 4GB DDR3-1600; Intel 520 (120GB) SSD x 2; striped volume; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
  • IOMeter setting for Sequential Throughput tests: Continuously read from/write to a single 16GB file (10GbE network environments) / 8GB file (1GbE network environments) for 3 minutes; Block size: 64KB for SMB, 4KB for IOPS and iSCSI
  • 1GbE Web Server Network Environment:
    • Intel Core i7-6700 3.40GHz; 16GB DDR4-2133; Intel Gigabit CT; MTU 1500; Ubuntu 16.04
    • (html) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark" http://DS_IP/index.html
    • (php) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark"http://DS_IP/echo.php
  • 1GbE AFP Network Environment: Mac Mini; 2.3GHz 4 core Intel Core i7; 16GB DDR3-1600; RAMdisk with 7GB source partition and 4GB target partition; MTU 1500; OSX 10.9

Special Note:

  • Performance figures are achieved in the Synology lab by using very powerful client computers with optimized network settings, and could vary in different environments. Regular office desktop or notebook computers may not be able to reproduce these figures.

Documentation:

Download the Synology RackStation DS2415+ Datasheet  (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
