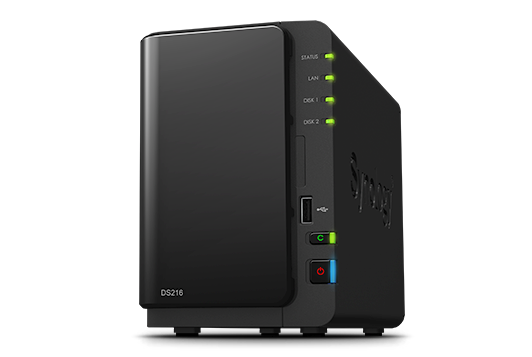

DiskStation DS216
All-in-One, high-performance NAS server suitable for small offices and workgroups

Features:

Powerful, compact solution

DS216 is a feature-rich, 2-bay NAS server, suitable for workgroups and office environments. With a hardware encryption engine, DS216 delivers speedy performance and protects data effectively, while boosting productivity. Screwless drive trays with hot-swappable support allow easy system maintenance.

Synchronize files across your devices

Cloud Station Suite provides real-time data synchronization across all your devices, such as computers, mobile devices, and other Synology NAS whenever a file is modified. "Intelliversioning" keeps the most important file versions to better utilize storage space.

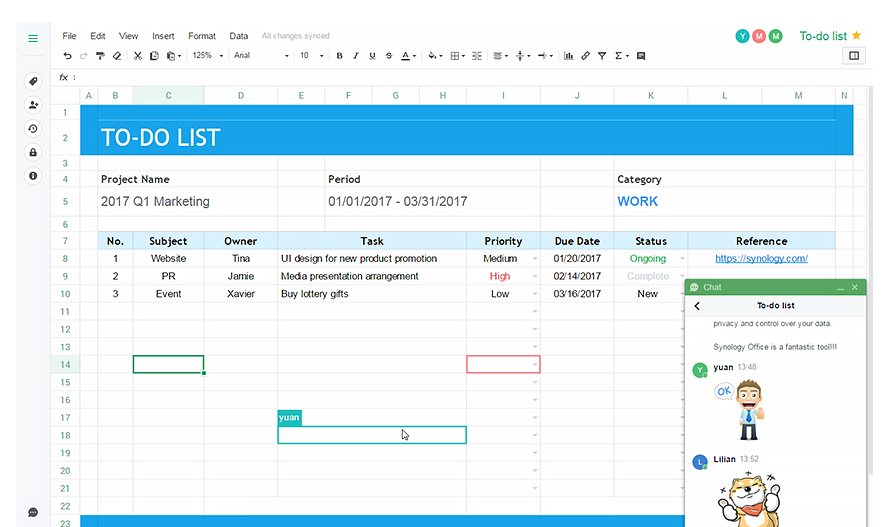

Real-time collaboration on your private cloud

Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

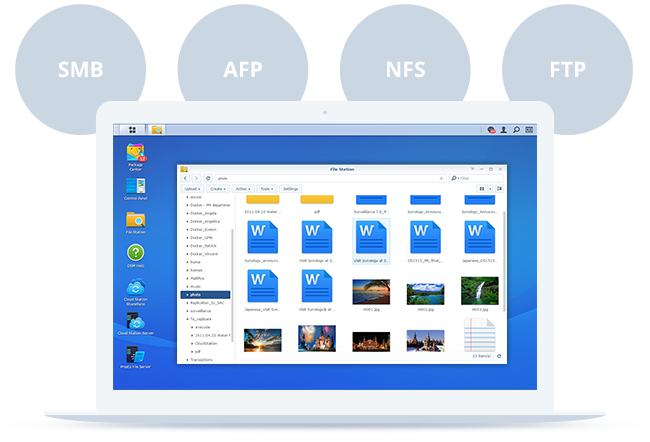

Ultimate file management and sharing

File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any environment.

Easy file access with QuickConnect

Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a simple customizable address (e.g. https://customID.quickconnect.to), so that you can instantly access media and work files on any Windows/Mac/Linux computer, laptop, or mobile device without additional charge.

Seamless integration with your mobile devices

Synology mobile applications are designed to allow quick and secure access to your data wherever you are.

• DS Audio
• DS Photo
• DS Video

Powered by Synology DSM

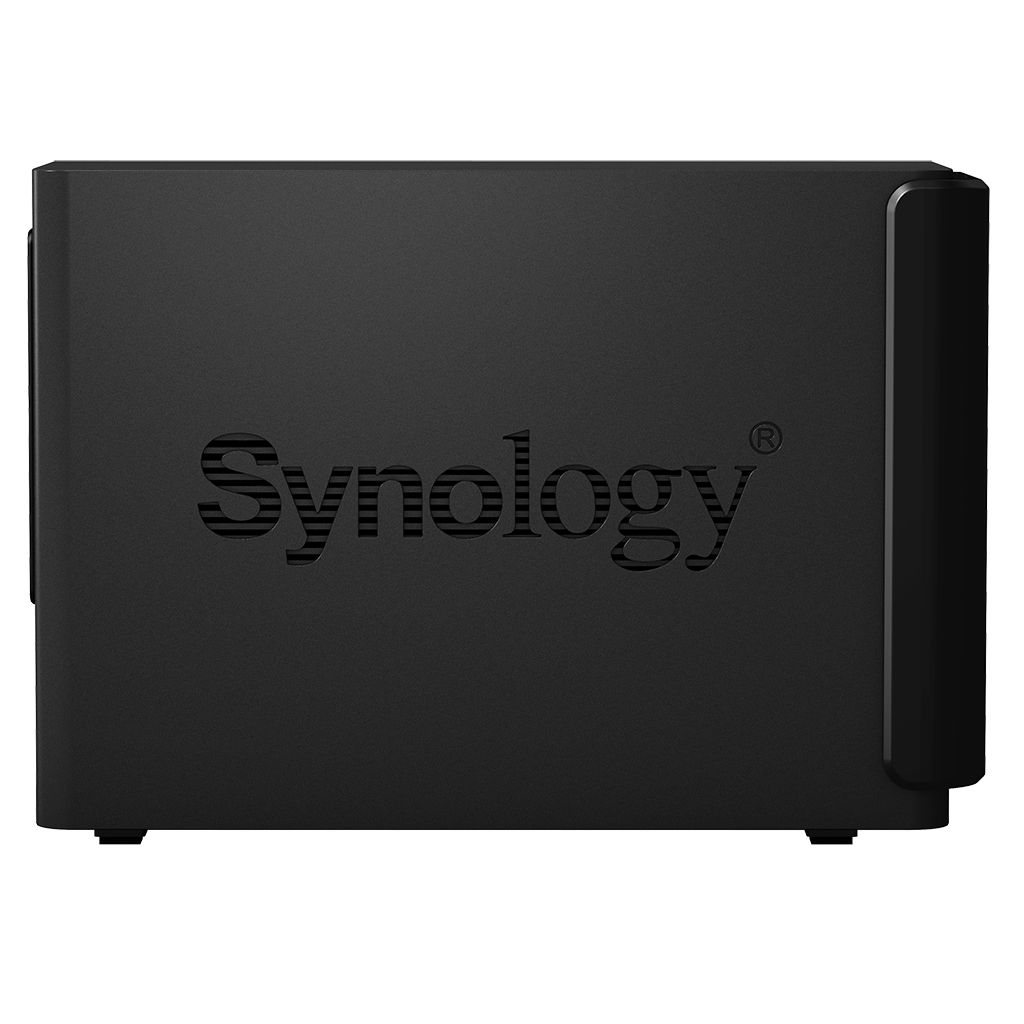

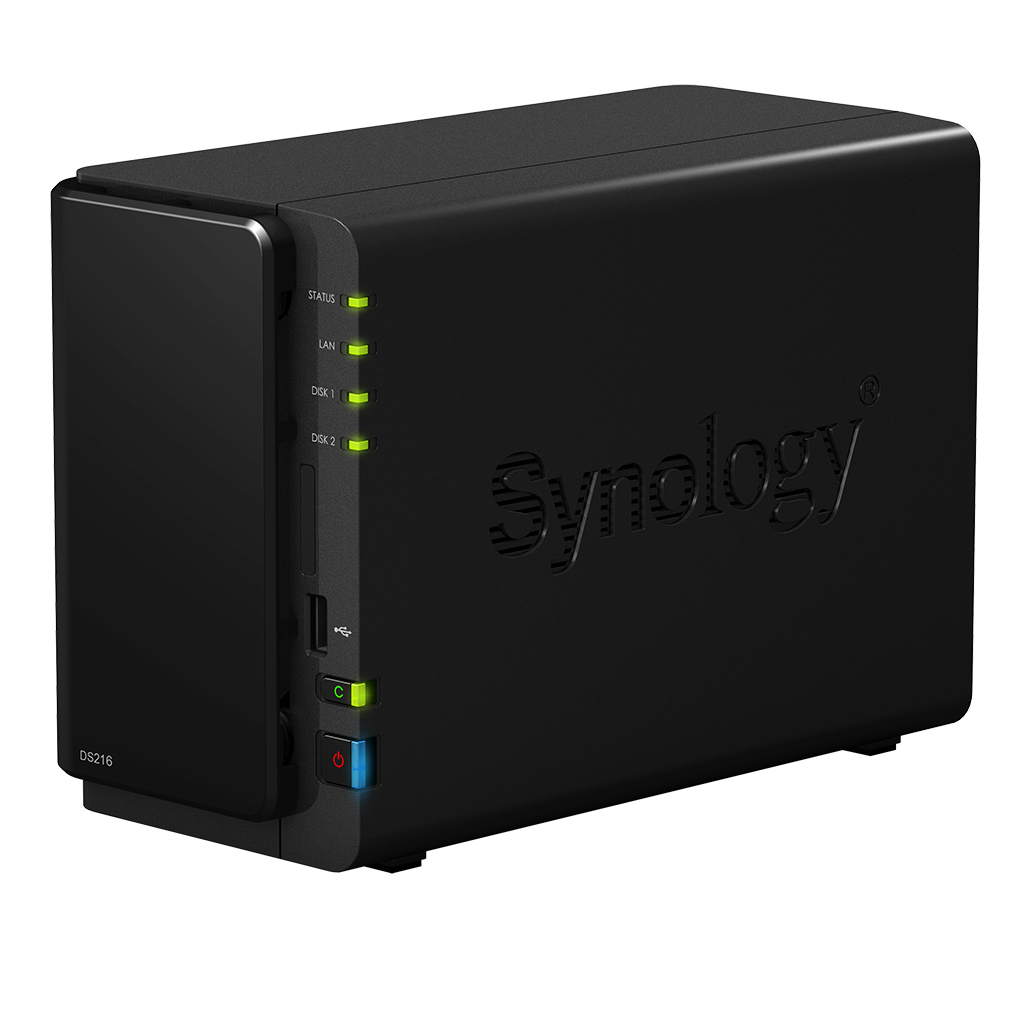

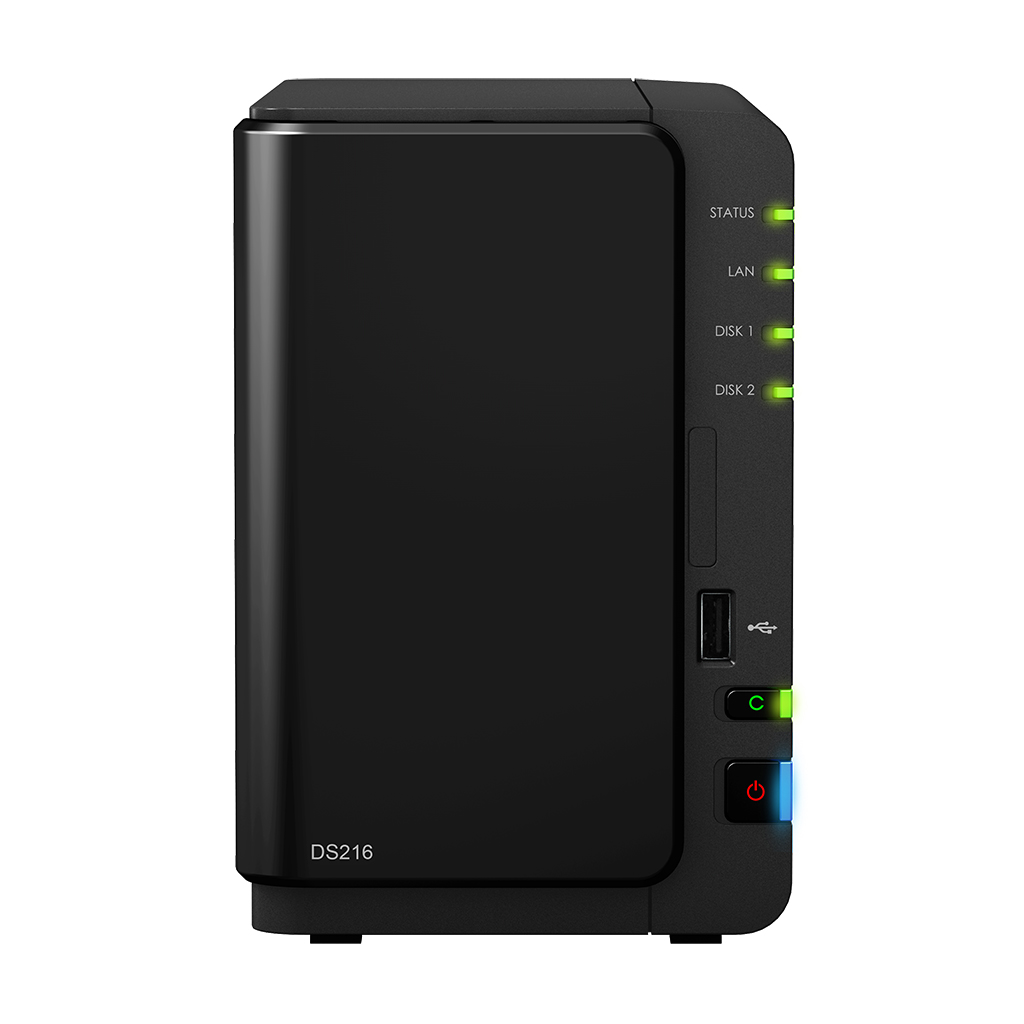

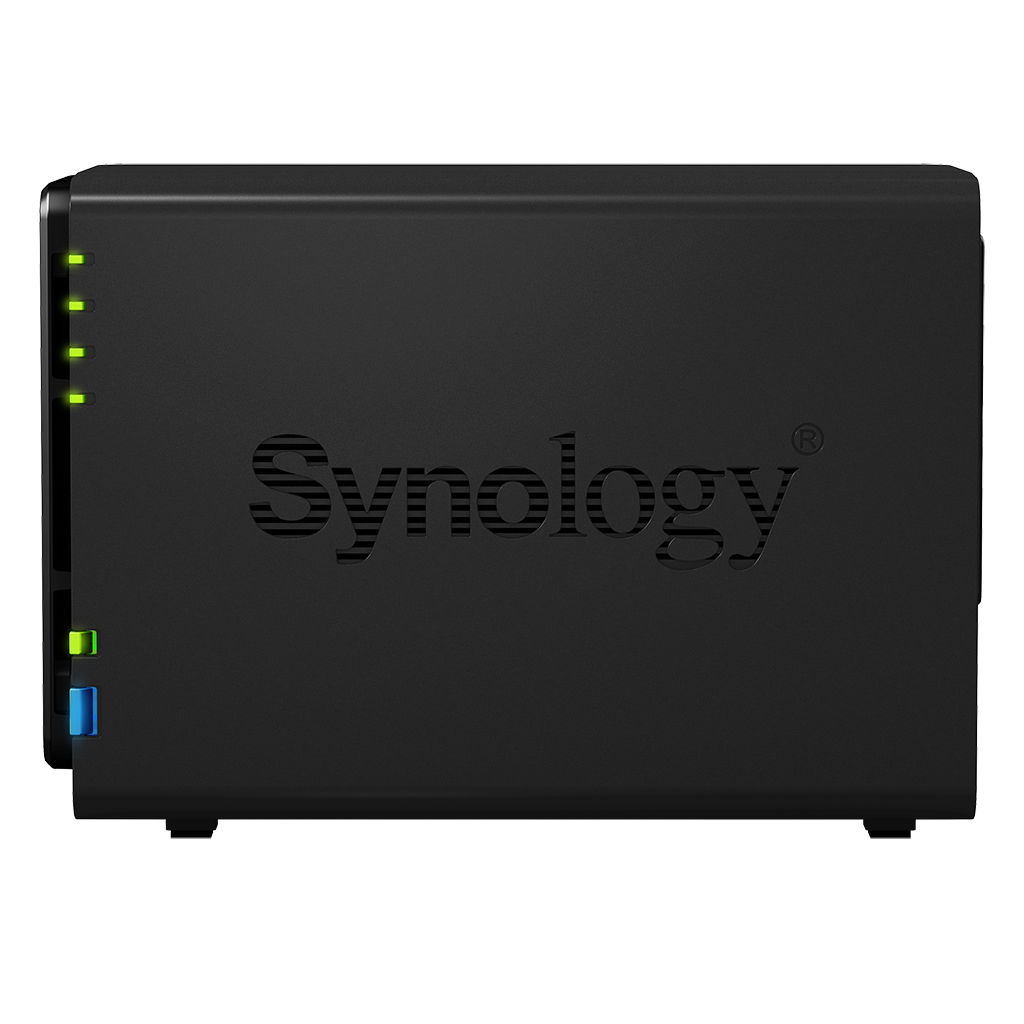

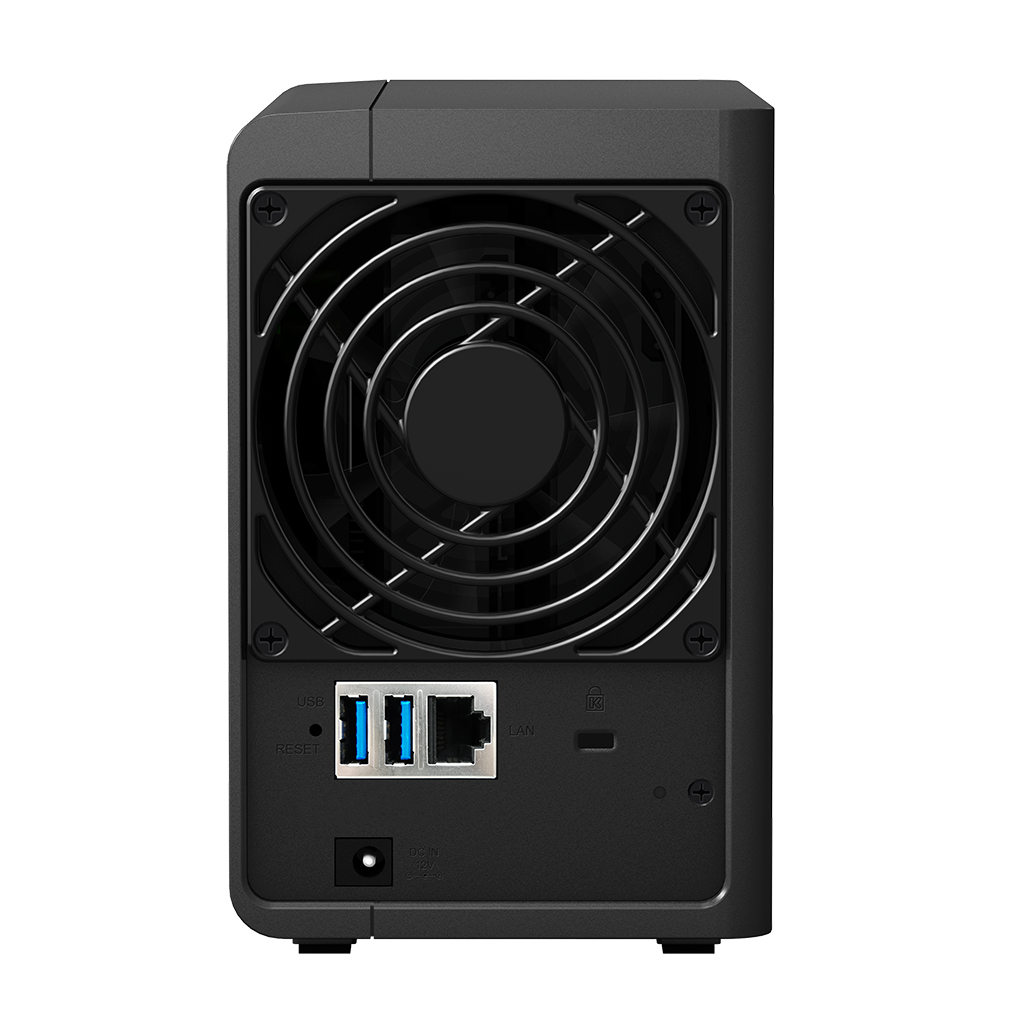

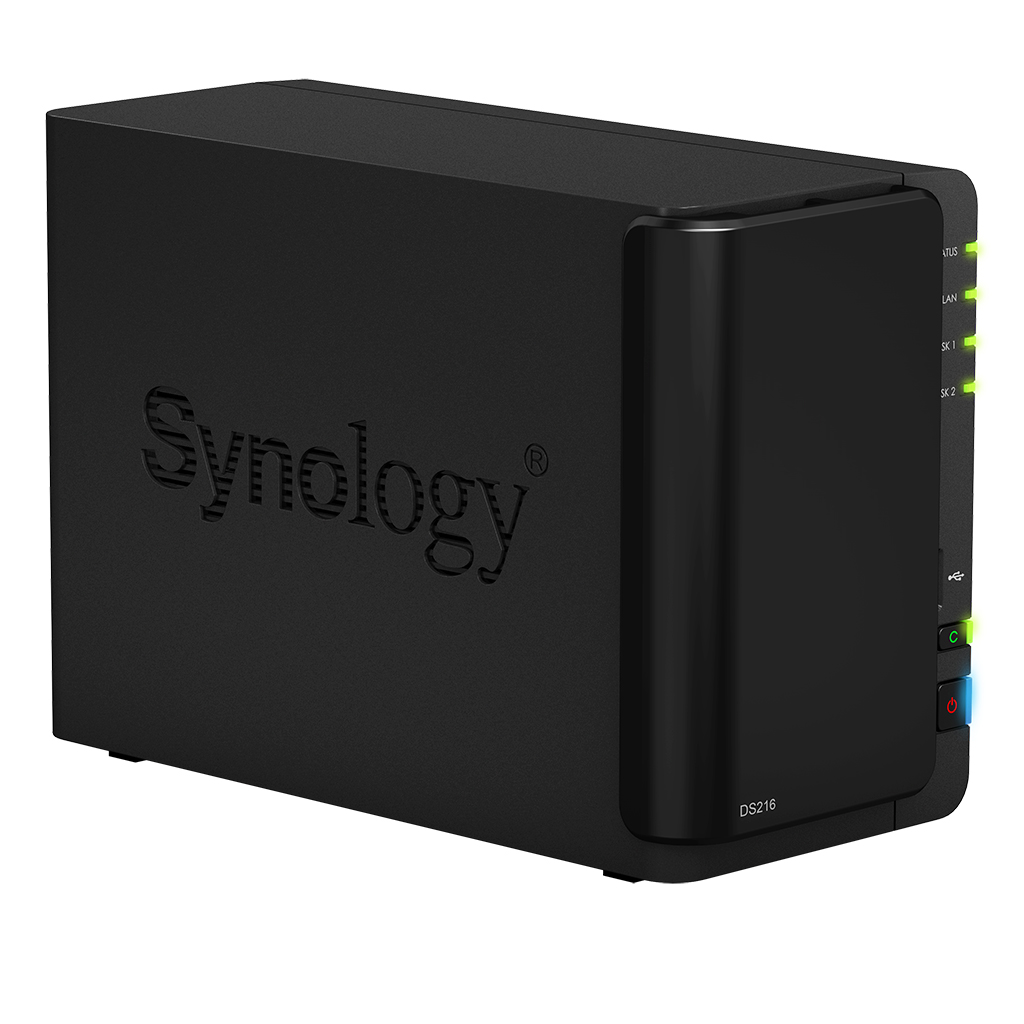

Product Views:

Technical Specifications:

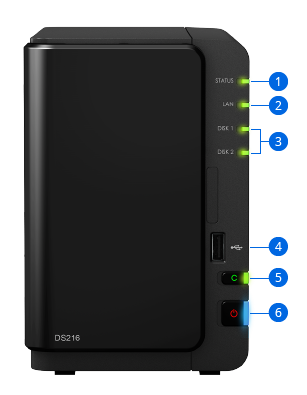

1. Status indicator
2. LAN indicator
3. Drive status indicator
4. USB 2.0 port
5. USB copy button
6. Power button and indicator

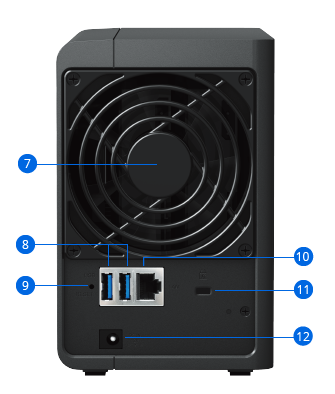

7. Fan
8. USB 3.0 port
9. Reset button
10. 1GbE RJ-45 port
11. Kensington Security Slot
12. Power port

Hardware Specifications:
CPU
CPU Model	Marvell Armada 385 88F6820
CPU Architecture	32-bit
CPU Frequency	Dual Core 1.3 GHz
Hardware Encryption Engine
Memory
System Memory	512 MB DDR3
Storage
Drive Bay(s)	2
Compatible Drive Type	3.5" SATA III / SATA II HDD 2.5" SATA III / SATA II HDD 2.5" SATA III / SATA II SSD
Maximum Internal Raw Capacity	20 TB (10 TB HDD x 2) (Capacity may vary by RAID types)
Maximum Single Volume Size	16 TB
Hot Swappable Drive
Notes	"Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit.
External Ports
RJ-45 1GbE LAN Port	1
USB 2.0 Port	1
USB 3.0 Port	2
USBCopy
File System
Internal Drives	EXT4
External Drives	EXT4 EXT3 FAT NTFS HFS+* exFAT*
Notes	HFS+ is read only, max 2TB volume size. exFAT Access is purchased separately in Package Center.
Appearance
Size (Height X Width X Depth)	165 mm x 108 mm x 233.2 mm
Weight	1.3 kg
Others
System Fan	92 mm x 92 mm x 1 pcs
Fan Speed Mode	Cool Mode Quiet Mode
Wireless Support (dongle)
Brightness adjustable front LED indicators
Power Recovery
Noise Level	18 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter	60W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	15.48 W (Access) 7.2 W (HDD Hibernation)
British Thermal Unit	52.86 BTU/hr (Access) 24.58 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature	5°C to 40°C (40°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Other
Certification	FCC Class B CE Class B BSMI Class B
Warranty	2 Years
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Support for Wake on WAN needs switch and routers which recognize Magic Packet. Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
General DSM Specifications:
Networking protocol	CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN , L2TP)
File system	Internal: Btrfs, ext4 External: ext4, ext3, FAT, NTFS, HFS+ (read only)
Supported RAID type	Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1
Storage management	Maximum single volume size: 16TB Maximum internal volume: 256 Maximum iSCSI target: 10 Maximum iSCSI LUN: 10
File sharing capability	Maximum user account: 2048 Maximum group: 256 Maximum shared folder: 256 Maximum concurrent SMB/NFS/AFP/FTP connection: 128
Privilege	Windows Access Control List (ACL)
Directory service	Windows ADS Domain Integration, LDAP Integration
Security	FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection
Utilities	Synology Web Assistant, Synology Assistant, Cloud Station, Photo Station Uploader, Evidence Integrity Authenticator
Supported client	Windows XP onwards, Mac OS X 10.7 onwards, Ubuntu 12 onwards
Supported browser	Chrome, Firefox, Internet Explorer: 9 onwards, Safari 8 onwards, Safari (iOS 7 onwards on iPad), Chrome (Android 4.0 onwards on tablets)
Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český
Packages and Applications:
File Station	Virtual drive, remote folder, Windows ACL editor, compress/extract archived files, bandwidth control for specific users or groups, create sharing links, transfer logs
Backup Solutions	Network backup; local backup; desktop backup; configuration backup; OS X Time Machine; backup data to public cloud; shared folder sync - maximum task number: 2
Mail Server	Supported Mail Server protocols: POP3, SMTP, IMAP, support LDAP/AD account
FTP Server	Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocols, boot over the network with TFTP and PXE support, transfer logs
Web Station	Virtual Host (up to 30 websites), PHP/MySQL, 3rd-Party Applications Support
Printer Server	Maximum printer: 2, printing protocols: LPR, CIFS, IPP, iOS printing, Google Cloud Print, multi functional print server (MFP functions are for Windows PC only)
Storage Advisor	Volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, largest/most/least frequently modified files
Security Advisor	Malware detection/removal, user account/password, network, system-related security scan
Surveillance Station	Default IP cam #: 2, MAX IP cam # (licenses required): 16 (total of 480 FPS at 720P, H.264) (Including two free camera licenses. Procurement of additional licenses is required.)
VPN Server	Maximum Connections: 5, VPN Method: PPTP, OpenVPN™, L2TPe
Mail Station	Webmail interface for Mail Server; receiving mails from multiple POP3 mailboxes, customizable SMTP server
Antivirus Essential	Full System Scan, Scheduled Scan, White List Customization, Virus Definition Auto Update
Cloud Station	Maximum concurrent file transfers: 128, retain historical and deleted file versions
Cloud Sync	One or two-way synchronization with public cloud storage providers including Amazon Cloud Drive, Amazon S3-compatible storage, Baiduyun, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, Megafon Disk, Microsoft OneDrive, OpenStack Swift-compatible storage, WebDAV servers, Yandex Disk
DLNA/UPnP Media Server	DLNA certified, PS3/PS4/Xbox 360/Xbox One support
Download Station	Supported download protocols: BT/HTTP/FTP/NZB/eMule Maximum concurrent download task: 30
Other packages	Photo Station, Audio Station, iTunes Server, 3rd-party packages
iOS/Android applications	DS cloud, DS file, DS finder, DS cam, DS note, DS audio, DS get, DS photo, DS video
Windows Phone applications	DS file, DS finder, DS audio, DS get, DS photo, DS video
Environment & Packaging:
Environment	RoHS Compliant
Packaging Content	RS216 main unit Welcome note Accessory pack AC power cord AC power adapter RJ-45 LAN cable
Optional Accessories	Camera License Pack VS360HD

*Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
¹ The performance figures could vary on different environments.

Performance:

2-bay NAS

Synology strives to enhance the performance of our NAS with every software update, even long after a product is launched. For enterprises and users that demand uncompromising performance from their servers, check the figures below to find the most suitable choice.

1GbE SMB - Sequential Throughput (64KB)

Model	RS217	DS718+	DS218+	DS216	DS218play	DS218j	DS216se
Read	221.65	226.22	113.11	113.02	112.83	113.11	101.8
Write	171.6	188.27	112.62	108.54	112.1	112.35	64.1

1GbE SMB - Sequential Throughput via Encrypted Shared Folder (64KB)

Model	RS217	DS718+	DS218+	DS216	DS218play	DS218j	DS216se
Read	118.64	226.13	113.11	112.35	112.69	105.67	30.21
Write	64.64	184.7	112.04	69.97	112.93	58.93	12.6

1GbE SMB - Windows File Transfer (3GB file x 1)

Model	RS217	DS718+	DS218+	DS216	DS218play	DS218j	DS216se
Windows Download	111.89	112.36	112.77	111.47	112.23	111.95	96.33
Windows Download	111.32	111.83	111.55	110.67	110.78	109.31	59.37

1GbE SMB - Windows File Transfer (1MB file x 3000)

Model	RS217	DS718+	DS218+	DS216	DS218play	DS218j	DS216se
Windows Download	82.04	85.53	84.53	82.11	82.81	80.28	5.62
Windows Download	58.54	68.21	68.39	59.47	63.9	57.82	32.27

1GbE SM - Windows File Transfer via Encrypted Shared Folder (3GB file x 1)

Model	RS217	DS718+	DS218+	DS216	DS218play	DS218j	DS216se
Windows Download	49.94	112.27	112.63	51.05	112.29	48.9	24.59
Windows Download	35.52	104.67	110.94	35.91	111.15	33.07	12.3

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (1MB file x 3000)

Model	RS217	DS718+	DS218+	DS216	DS218play	DS218j	DS216se
Windows Download	40.53	85.27	83.43	40.9	57.03	39.1	20.94
Windows Download	21.9	41.87	42.59	22.24	43.5	20.8	8.14

1GbE AFP - Mac File Transfer (3GB file x 1)

Model	RS217	DS718+	DS218+	DS216	DS218play	DS218j	DS216se
AFP Download	94.46	93.5	94.25	93.96	94.44	93.01	84.35
AFP Upload	94.09	92.49	92.9	93.19	93.55	90.19	57.05

1GbE AFP - Mac File Transfer (1MB file x 3000)

Model	RS217	DS718+	DS218+	DS216	DS218play	DS218j	DS216se
AFP Download	50.25	68.68	69.81	50.26	51.73	50.08	42.2
AFP Upload	57.99	64.4	57.13	57.43	60.89	55.31	33.66

1GbE Web Server - PHP Response Efficiency

Model	RS217	DS718+	DS218+	DS216	DS218play	DS218j	DS216se
Responses per second	4502.74	13329.55	8763.35	4481.41	8920.13	4632.2	765.5

NAS:

• Operating System: DSM 6.1
• Volume Type: RAID 5 (4 bay), RAID 1 (2 bay), Basic (1 bay)
• Drives:
  • DS416slim: Fully loaded with Intel 535 Series 240GB SSDSC2BW240H6 SSD
  • Other models: Fully loaded with Seagate ST6000VN0001 6TB HDD
• File System:
  • EXT4:
    • [1-bay] DS118, DS115j
    • [2-bay] RS217, DS216, DS218play, DS218j, DS216se
    • [4-bay] RS816, DS418, DS418j, DS416slim
  • Btrfs:
    • [2-bay] DS718+, DS218+
    • [4-bay] RS815(RP)+, DS918+, DS418play
• 1GbE Network Environments:
  • For models with single 1GbE LAN port: MTU 1500; connected to 1 client PC via HP 2530-48G switch
  • For models with multiple 1GbE LAN ports: Link Aggregation is enabled for Sequential Throughput tests; MTU 1500; connected to client PCs via HP 2530-48G switch

Client PC:

• 1GbE SMB Network Environments:
  • For NAS models with single 1GbE LAN port: Intel Core i7-3770 3.40GHz; 32GB DDR3-1866; RAMdisk with 14GB source partition and 14GB target partition; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
  • For NAS models with multiple 1GbE LAN ports: Intel Core i7-3770 3.40GHz; 4GB DDR3-1600; Intel 520 (120GB) SSD x 2; striped volume; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
• IOMeter setting for Sequential Throughput tests: Continuously read from/write to a single 8GB file for 3 minutes; Block size: 64KB
• 1GbE Web Server Network Environment:
  • Intel Core i7-6700 3.40GHz; 16GB DDR4-2133; Intel Gigabit CT; MTU 1500; Ubuntu 16.04
  • (php) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark"http://DS_IP/echo.php
• 1GbE AFP Network Environment: Mac Mini; 2.3GHz 4 core Intel Core i7; 16GB DDR3-1600; RAMdisk with 7GB source partition and 4GB target partition; MTU 1500; OSX 10.9

Special Note:

• Performance figures are achieved in the Synology lab by using very powerful client computers with optimized network settings, and could vary in different environments. Regular office desktop or notebook computers may not be able to reproduce these figures.

Documentation:

Download the Synology DiskStation DS216 Datasheet  (PDF).
