Synology DiskStation DS116
Step up to an enhanced private cloud solution

Synology DiskStation DS116dlna

Sorry, this product is no longer available. Please contact us for more information.

Overview:

Synology DiskStation DS116 is a compact 1-bay NAS server with outstanding performance, bringing you a novel way to store, share, stream and synchronize data in your daily life. With comprehensive business and multimedia applications, DS116 is designed to boost up productivity and let you enjoy multimedia content effortlessly. Synology DS116 is also backed with Synology’s 2-year limited warranty.

  • Compact & quiet, blending into your small offices and home
  • Dual-core CPU with hardware encryption engine
  • Over 112.67 MB/s reading, 111.82 MB/s writing
  • Dual USB 3.0 ports for external storages and printers
  • Multimedia streaming via DLNA-certified media server
  • Brightness adjustable front LED indicators with schedule control
  • Easy-to-use, web-based operating system for all browsers

Optimal Price/Performance Ratio

Synology DS116 is a compact, all-purpose 1- bay NAS with supreme performance, designed to make your daily data storage simpler than ever. Equipped with a Marvell ARMADA dualcore CPU and 1GB DDR3 RAM, DS116 delivers high performance - 112.67 MB/s reading speed and 111.82 MB/s writing speed - in a Windows environment. Powered with a hardware encryption engine, DS116 excels with its high-speed encrypted data transmission - over 112.97 MB/s for reading and 93.73 MB/s for writing - making itself one of the best NAS available today. DS116 comes with built-in floating-point unit support that allows quick thumbnail generation for your photos. The dual USB 3.0 ports on the rear panel can provide high speed data transmission to a large variety of external USB devices, including Wi-Fi dongles, printers, external hard drives and more.

Supported by numerous feature-rich applications, DS116 turns your hard drive into a versatile storage server, which acts not only as your private cloud for anywhere access, but also as a backup device, online photo album, local storage of your public cloud data, 24/7 download portal, and so much more.

Cross-Platform File Sharing and Data Synchronization

Synology DS116 supports comprehensive network protocols, ensuring a seamless file sharing experience across Windows, Mac, and Linux platforms. Windows AD and LDAP integration allow DS116 to fit quickly and effortlessly into any existing network environment without the necessity to recreate user accounts. Cloud Sync keeps your Dropbox, Google Drive, Microsoft OneDrive, Baidu and Box storages in sync with your personal DiskStation at home. The Cloud Station Suite allows you to sync files among multiple devices - Windows PC, Mac, Linux, iOS or Android tablets/phones - effortlessly keeping everything up-to-date. All the seamless file sharing over the Internet is protected at a high security level with the HTTPS, firewall, and IP auto-block mechanisms supported by DS116.

Comprehensive Office Applications

With Synology DS116 and its rich business applications, you can boost personal productivity and therefore become more efficient at work. SpreadSheet allows you to create, edit and simultaneously collaborate on a spreadsheet with multiple users on any browser, and share it with a specific group of people effortlessly. VPN Server offers an easy VPN solution that turns your Synology DS116 into a VPN server, providing a secure way of connecting to a private LAN from a remote location. RADIUS Server strengthens network security by overseeing wireless access authentication via the RADIUS (Remote Authentication Dial-In User Service) networking protocol. Surveillance Station offers a centralized interface to manage IP cameras deployed in your office or home, allowing users traveling miles away to safeguard their personal environment by watching live views, recording events, and taking snapshots with a computer or iOS/Android device.

Extensive Multimedia Features

With various tools supported by DS116, managing your multimedia content has never been easier. Photo Station’s intuitive design allows you to effortlessly organize photos into customized categories, smart albums, and blog posts; as well as link them to social networking websites like Facebook, Twitter, Flickr, and Weibo with just a few clicks. Audio Station comes with a built-in lyrics plugin, Internet radios, and support for DLNA, AirPlay, and Bluetooth speakers for quality playback. With Video Station, you can watch movies and TV shows online or directly through the DS video app on Apple TV.

DLNA-Certified Media Server

As a certified DLNA DMS (Digital Media Server), DS116 serves as a ready media server with the capability to host digital multimedia content for remote playback. DLNA-compliant devices can access the shared content on DS116 in the same local area network without fussing over privilege settings. DS116 not only makes your multimedia files accessible without preconfiguration, but also transforms your mobile device into a remote control through Synology mobile apps. Movies, photos, and music can be immediately streamed to your TV or players, right from the palm of your hand.

Anywhere/Anytime Availability

QuickConnect and EZ-Internet configure your DS116 to be accessed over the Internet with minimal effort. Multimedia content is downright accessbble via Synology’s popular mobile apps like DS photo, DS audio, and DS video. DS download, DS file, and DS cloud allow file download/access/synchronization from anywhere at anytime.

Energy-efficient with Cool and Quiet Design

All Synology NAS are designed with energy efficiency in mind. Inside DS116, there’s a 60 x 60 mm fan with smart airflow functions that keep the system running cool 24/7. DS116 consumes minimal power at only 10.68 watts during access and 6.28 watts during hard drive hibernation. The noise dampening design makes DS116 quiet compared to its PC counterparts. The support of Wake on LAN/WAN, scheduled power on/off can further reduce power consumption and operation cost.

All Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. Synology acknowledges the responsibility as a global citizen to continually work to reduce the environmental impact of every product produced.

Features:

Powerful compact solution

Powered by a blazing-fast, dual-core processor, DS116 delivers powerful performance, while enabling real time file syncing across multiple devices and public cloud storage services under a single pane of glass. Enhance your work productivity with enhanced collaboration tools and further protect your data with backup solutions.

Synchronize files across your devices

Cloud Station Suite provides real-time data synchronization across all your devices, such as computers, mobile devices, and other Synology NAS whenever a file is modified. "Intelliversioning" keeps the most important file versions to better utilize storage space.

Cloud Station Sharesync

Cloud Station Sharesync

Cloud Station Drive

Cloud Station Drive

Cloud Station Server

Cloud Station Server

DS Cloud

DS Cloud


Easy file access with QuickConnect

Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a simple customizable address (e.g. https://customID.quickconnect.to), so that you can instantly access media and work files on any Windows/Mac/Linux computer, laptop, or mobile device without additional charge.

Easy file access with QuickConnect

Stream content to your TV

Turn your Synology NAS into a home media hub and stream your digital contents to computers, mobile devices, Samsung TV, Roku players, Apple TV, Google Chromecast, and DLNA devices.

Samsung TV
Samsung TV
Apple TV
Apple TV
Android TV
Android TV
Roku
Roku


Seamless integration with your mobile devices

Synology mobile applications are designed to allow quick and secure access to your data wherever you are.

  • DS Audio
  • DS Photo
  • DS Video

Powered by Synology DSM

Office

Office

Collaborate together on spreadsheets and documents on your own private cloud.

Public Cloud Integration

Public Cloud Integration

Backup and synchronize data easily between your public cloud accounts and your NAS.

File Server/Management

File Server/Management

Powerful built-in file management and sharing services.

DSM UI

DSM UI

Award-winning operating system with an intuitive user interface and powerful capabilities.

Security

Security

Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.

Multimedia

Multimedia

Complete multimedia solution for management, streaming, and playback.


Product Views:

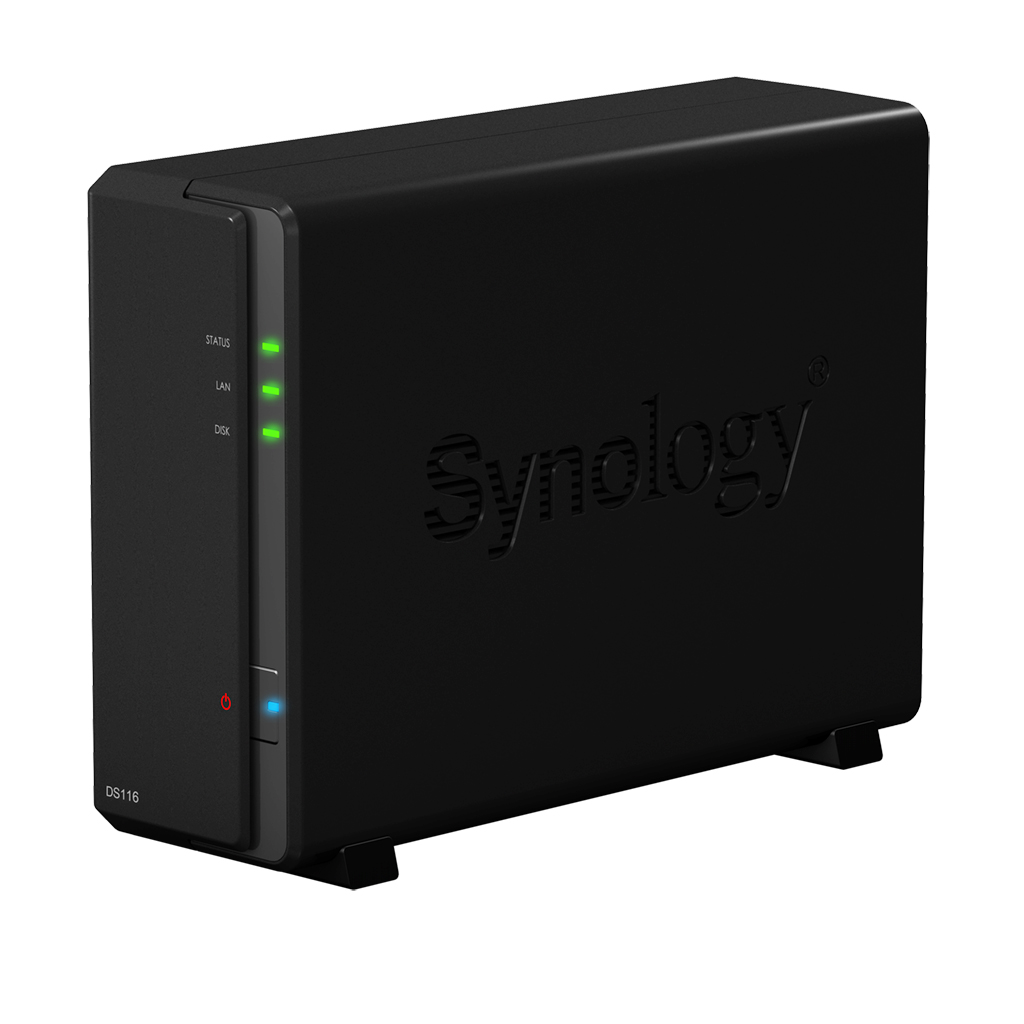

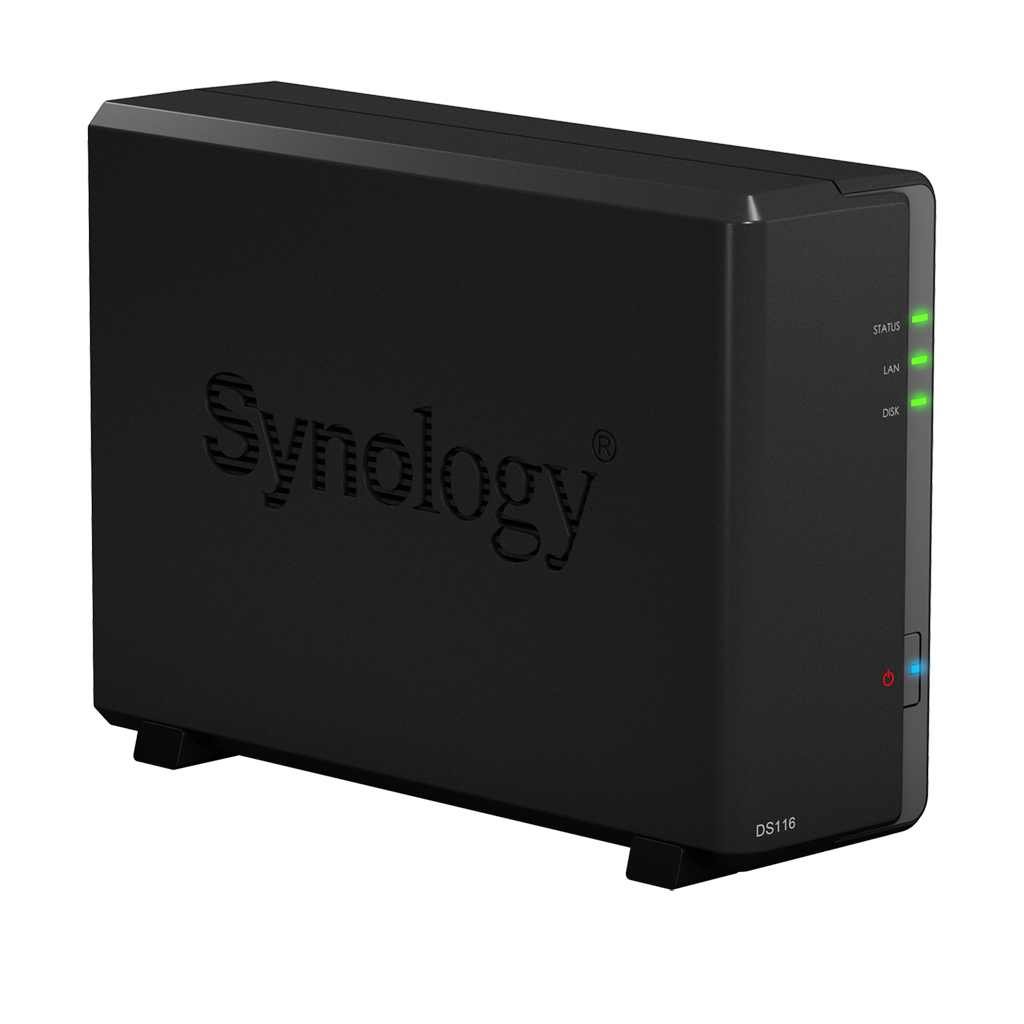

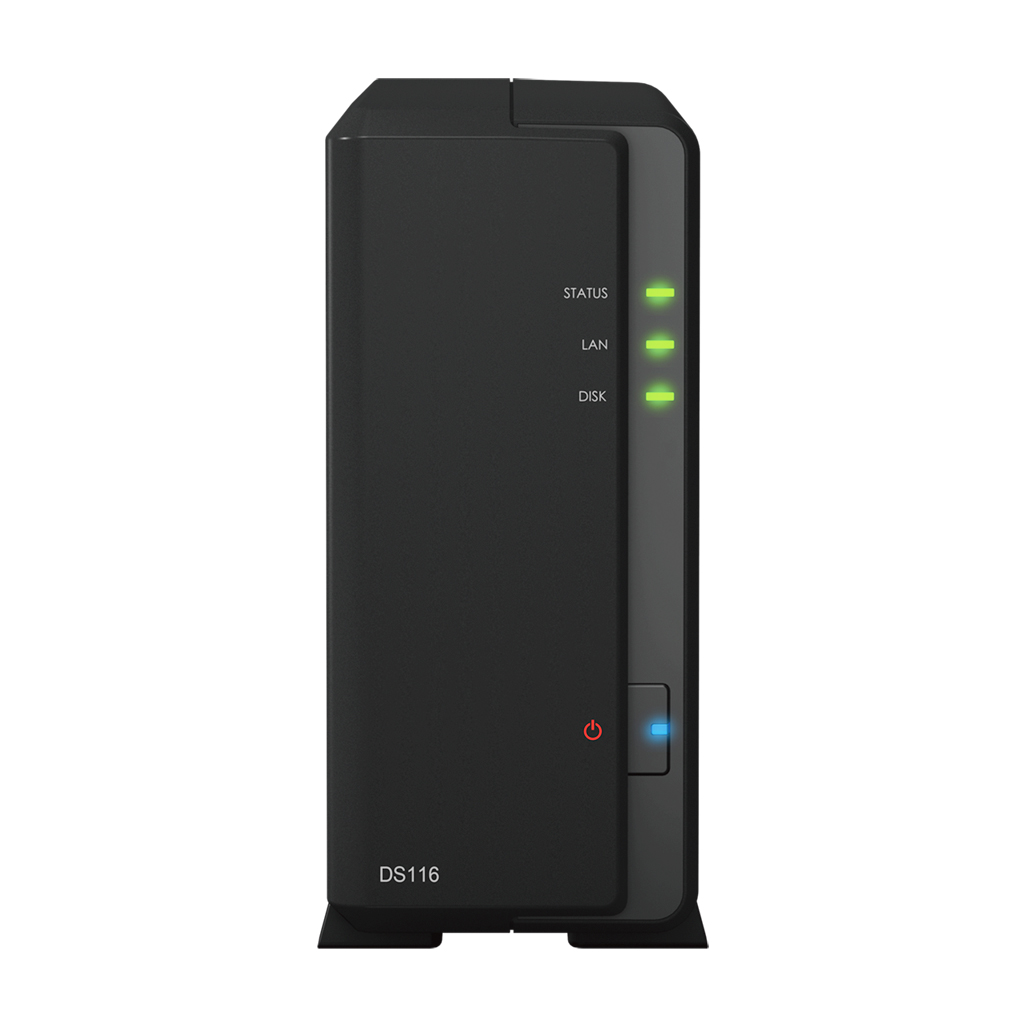

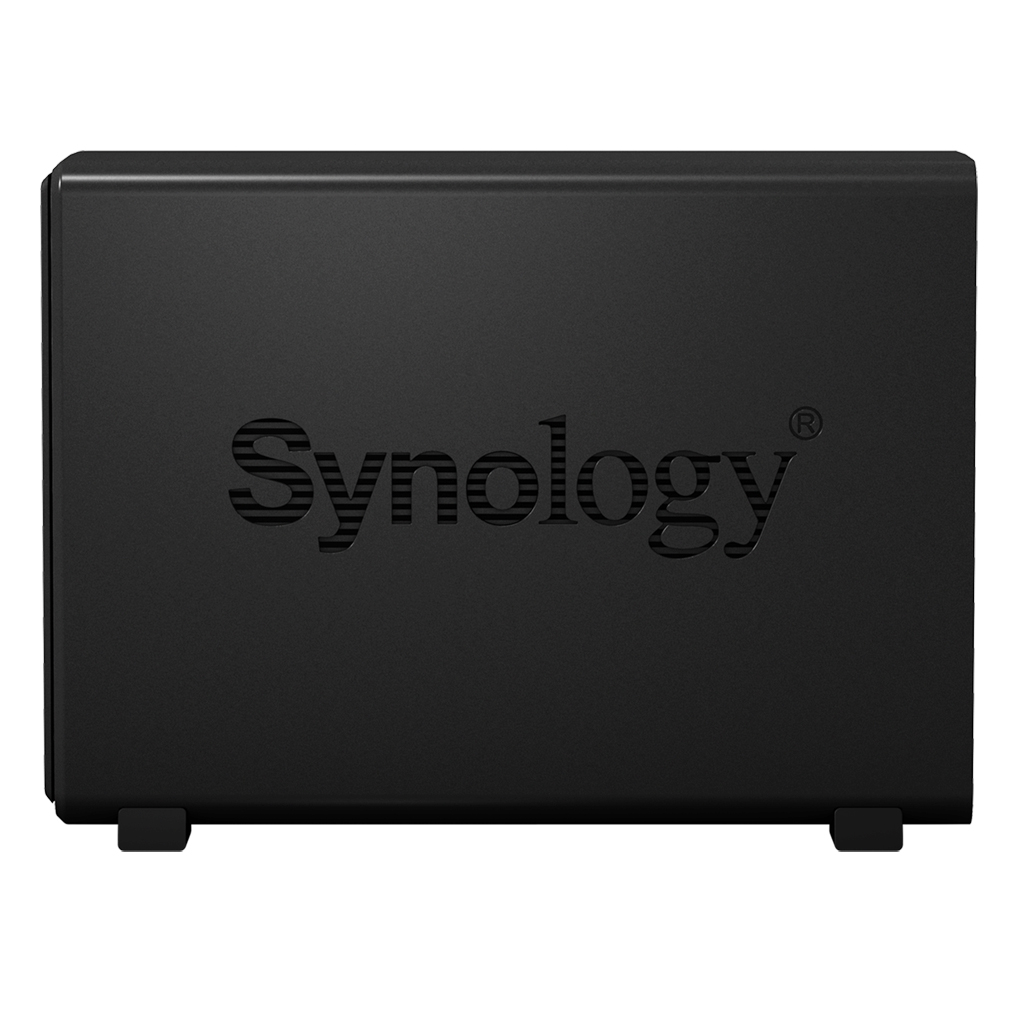

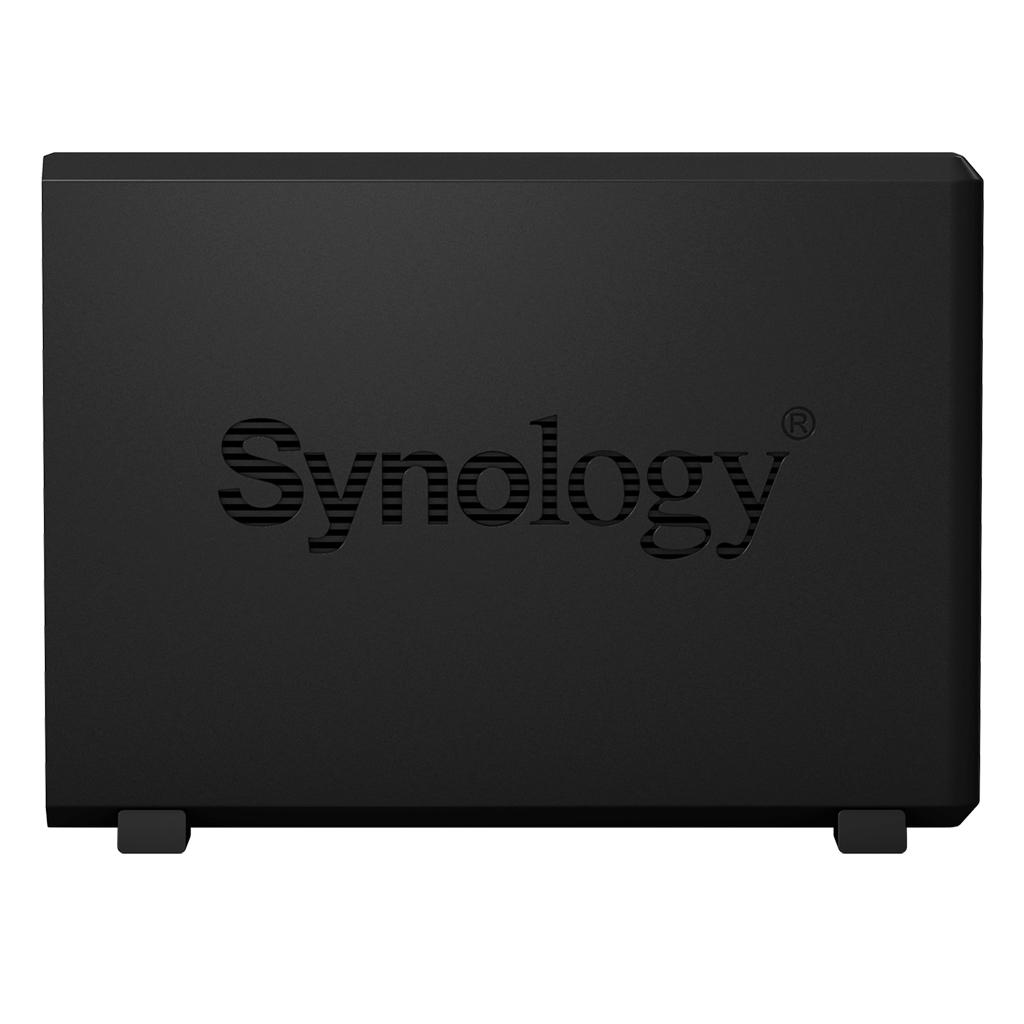

Synology DS116 (1 of 6)
Synology DS116 (2 of 6)
Synology DS116 (3 of 6)
Synology DS116 (4 of 6)
Synology DS116 (5 of 6)
Synology DS116 (6 of 6)

Technical Specifications:

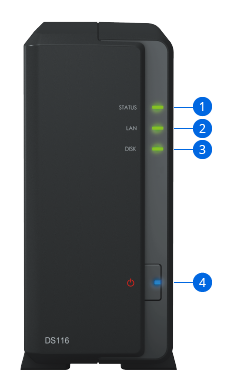

Front View

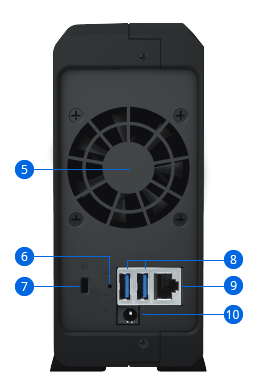

Rear View
  1. Status indicator
  2. LAN indicator
  3. Drive status indicator
  4. Power button and indicator
  5. Fan
  6. Reset button
  7. Kensington Security Slot
  8. USB 3.0 port
  9. 1GbE RJ-45 port
  10. Power port
Technical Specifications:
Hardware Specifications
CPU Model Marvell Armada 385 88F6820
CPU Architecture 32-bit
CPU Frequency Dual Core 1.8 GHz
Hardware Encryption Engine
Memory
System Memory 1 GB DDR3
Storage
Drive Bay(s) 1
Compatible Drive Type*
  • 3.5" SATA HDD
  • 2.5" SATA HDD (with optional 2.5" Disk Holder)
  • 2.5" SATA SSD (with optional 2.5" Disk Holder)
Maximum Internal Raw Capacity 10 TB (10 TB HDD x 1) (Capacity may vary by RAID types)
Maximum Single Volume Size 16 TB
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum single volume size is not directly related to the maximum raw capacity.
External Ports
RJ-45 1GbE LAN Port 1
USB 3.0 Port 2
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+*
  • exFAT*
Notes
  • HFS+ is read only, max 2TB volume size.
  • exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 166 mm x 71 mm x 224 mm
Weight 0.7 kg
Others
System Fan 60 mm x 60 mm x 1 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
  • Low-power Mode
Brightness adjustable front LED indicators
Power Recovery
Noise Level* 16.4 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 36W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 10.68 W (Access)
6.28 W (HDD Hibernation)
British Thermal Unit 36.44 BTU/hr (Access)
21.43 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 2 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Support for Wake on WAN needs switch and routers which recognize Magic Packet.
  • Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
General DSM Specifications:
Networking protocol CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN , L2TP)
File system
  • Internal: ext4
  • External: ext4, ext3, FAT, NTFS, HFS+ (read only)
Supported RAID type Basic
Storage management
  • Maximum single volume size: 16TB
  • Maximum internal volume: 1
  • Maximum iSCSI Target: 10
  • Maximum iSCSI LUN: 10
File sharing capability
  • Maximum user accounts: 2048
  • Maximum groups: 256
  • Maximum shared folders: 256
  • Maximum concurrent CIFS/AFP/FTP/File Station connections: 128
Privilege Windows Access Control List (ACL)
Directory service Windows AD Integration: Domain Users login via Samba (CIFS)/AFP/FTP/File Station, LDAP integration
Security FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection
Utilities Synology Web Assistant, Cloud Station Drive, Cloud Station Backup, Photo Station Uploader, Evidence Integrity Authenticator
Supported client Windows 7 onwards, Mac OS X 10.10 onwards
Supported browser Chrome, Firefox, Internet Explorer: 9 onwards, Safari 8 onwards, Safari (iOS 7 onwards on iPad), Chrome (Android 4.0 onwards on tablets)
Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český
Packages and Applications:
File Station Virtual drive, remote folder, Windows ACL editor, compress/extract archived files, bandwidth control for specific users or groups, create sharing links, transfer logs
Backup Solutions Network backup; local backup; desktop backup; configuration backup; OS X Time Machine; backup data to public cloud; shared folder sync - maximum task number: 2
FTP Server Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocols, boot over the network with TFTP and PXE support, transfer logs
Printer Server Maximum printer: 2, printing protocols: LPR, CIFS, IPP, iOS printing, Google Cloud Print™, multi functional print server (MFP functions are for Windows PC only)
Storage Analyzer Volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, largest/most/least frequently modified files
Security Advisor Malware detection/removal, user account/password, network, system-related security scan
Log Center SSL connection, log rotation: 6 months, 1 year, 2 years, 3 years, email notification
Antivirus Essential Full system scan, scheduled scan, white list customization, virus definition auto update
Surveillance Station Maximum IP camera: 16 (total of 480 FPS at 720p, H.264) (Including two free camera licenses. Procurement of additional licenses is required.)
VPN Server Maximum connections: 5, supported VPN protocols: PPTP, OpenVPN, L2TP
Web Station Virtual Host (up to 30 websites), PHP/MariaDB®, 3rd-Party applications support
Mail Server Supported Mail Server protocols: POP3, SMTP, IMAP, support LDAP/AD account
Mail Station Webmail interface for Mail Server; receiving mails from multiple POP3 mailboxes, customizable SMTP server
Cloud Station Maximum concurrent file transfers: 128, retain historical and deleted file versions
Cloud Sync One or two-way synchronization with public cloud storage providers including Amazon Cloud Drive, Amazon S3-compatible storage, Baiduyun, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, Megafon Disk, Microsoft OneDrive, OpenStack Swift-compatible storage, WebDAV servers, Yandex Disk
DLNA/UPnP Media Server DLNA certified, PS3/PS4/Xbox 360/Xbox One support
Note Station Rich-text note organization with versioning, encryption, sharing, media embedding and attachments
Download Station Supported download protocols: BT/HTTP/FTP/NZB/eMule
Maximum concurrent download task: 30
Other packages Photo Station, Audio Station, iTunes Server, 3rd-party packages
iOS/Android applications DS cloud, DS file, DS finder, DS cam, DS note, DS audio, DS get, DS photo, DS video
Windows Phone applications DS file, DS finder, DS audio, DS get, DS photo, DS video
Environment & Packaging:
Environment RoHS Compliant
Packaging Content
  • DS116 main unit
  • Welcome note
  • Accessory pack
  • AC power adapter
  • RJ-45 LAN cable
Optional Accessories
  • Camera License Pack
  • 2.5” Disk Holder Type C
  • VS360HD

*Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
1 The performance figures could vary on different environments.

Performance:

1-bay NAS

Synology strives to enhance the performance of our NAS with every software update, even long after a product is launched. For enterprises and users that demand uncompromising performance from their servers, check the figures below to find the most suitable choice.

1GbE SMB - Sequential Throughput (64KB)

Model DS116 DS115j
Read 112.98 100.29
Write 112.68 64.3

1GbE SMB - Sequential Throughput (64KB)

1GbE SMB - Sequential Throughput via Encrypted Shared Folder (64KB)

Model DS116 DS115j
Read 112.9 30.36
Write 93.37 12.41

1GbE SMB - Sequential Throughput via Encrypted Shared Folder (64KB)

1GbE SMB - Windows File Transfer (3GB file x 1)

Model DS116 DS115j
Windows Download 112.21 98.74
Windows Upload 111.28 62.17

1GbE SMB - Windows File Transfer (3GB file x 1) class="img-responsive center-block"

1GbE SMB - Windows File Transfer (1MB file x 3000)

Model DS116 DS115j
Windows Download 84.97 61.57
Windows Upload 62.03 33.09

1GbE SMB - Windows File Transfer (1MB file x 3000) class="img-responsive center-block"

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (3GB file x 1)

Model DS116 DS115j
Windows Download 58.62 25.02
Windows Upload 43.74 12.64

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (3GB file x 1)

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (1MB file x 3000)

Model DS116 DS115j
Windows Download 46.31 21.32
Windows Upload 27.21 8.28

1GbE SMB - Windows File Transfer via Encrypted Shared Folder (1MB file x 3000)

1GbE AFP - Mac File Transfer (3GB file x 1)

Model DS116 DS115j
AFP Download 93.82 85.07
AFP Upload 93.41 59.66

1GbE AFP - Mac File Transfer (3GB file x 1)

1GbE AFP - Mac File Transfer (1MB file x 3000)

Model DS116 DS115j
AFP Download 51.62 43.26
AFP Upload 61.24 35.3

1GbE AFP - Mac File Transfer (1MB file x 3000)

1GbE Web Server - HTML Response Efficiency

Model DS116 DS115j
Responses per second 33740.35 3668.92

1GbE Web Server - HTML Response Efficiency

1GbE Web Server - PHP Response Efficiency

Model DS116 DS115j
Responses per second 6020.35 761.35

1GbE Web Server - PHP Response Efficiency

NAS:

  • Operating System: DSM 6.1
  • Volume Type: RAID 5 (4 bay), RAID 1 (2 bay), Basic (1 bay)
  • Drives:
    • DS416slim: Fully loaded with Intel 535 Series 240GB SSDSC2BW240H6 SSD
    • Other models: Fully loaded with Seagate ST6000VN0001 6TB HDD
  • File System:
    • EXT4:
      • [1-bay] DS116, DS115j
      • [2-bay] RS217, DS216, DS216play, DS216j, DS216se
      • [4-bay] RS816, DS418, DS418j, DS416slim
    • Btrfs:
      • [2-bay] DS718+, DS218+
      • [4-bay] RS815(RP)+, DS918+, DS418play
  • 1GbE Network Environments:
    • For models with single 1GbE LAN port: MTU 1500; connected to 1 client PC via HP 2530-48G switch
    • For models with multiple 1GbE LAN ports: Link Aggregation is enabled for Sequential Throughput tests; MTU 1500; connected to client PCs via HP 2530-48G switch

Client PC:

  • 1GbE SMB Network Environments:
    • For NAS models with single 1GbE LAN port: Intel Core i7-3770 3.40GHz; 32GB DDR3-1866; RAMdisk with 14GB source partition and 14GB target partition; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
    • For NAS models with multiple 1GbE LAN ports: Intel Core i7-3770 3.40GHz; 4GB DDR3-1600; Intel 520 (120GB) SSD x 2; striped volume; Intel Gigabit CT; MTU 1500; Windows 7 64-bit
  • IOMeter setting for Sequential Throughput tests: Continuously read from/write to a single 8GB file for 3 minutes; Block size: 64KB
  • 1GbE Web Server Network Environment:
    • Intel Core i7-6700 3.40GHz; 16GB DDR4-2133; Intel Gigabit CT; MTU 1500; Ubuntu 16.04
    • (html) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark" http://DS_IP/index.html
    • (php) wrk -t 8 -c [10-250] -d 60s -H "Host: benchmark"http://DS_IP/echo.php
  • 1GbE AFP Network Environment: Mac Mini; 2.3GHz 4 core Intel Core i7; 16GB DDR3-1600; RAMdisk with 7GB source partition and 4GB target partition; MTU 1500; OSX 10.9

Special Note:

  • Performance figures are achieved in the Synology lab by using very powerful client computers with optimized network settings, and could vary in different environments. Regular office desktop or notebook computers may not be able to reproduce these figures.

Documentation:

Download the Synology DiskStation DS116 Data Sheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
